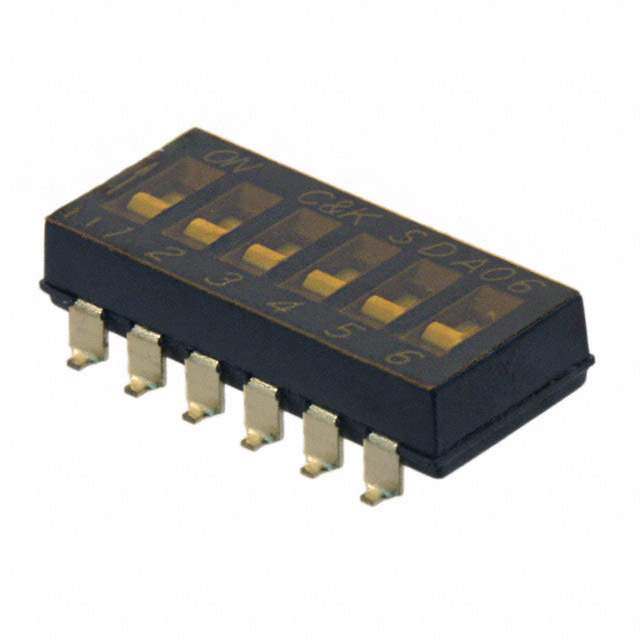

The SDA06H0SB is a subminiature slide switch manufactured by C&K Components. It is designed for surface mount applications (SMD) and features a single pole double throw (SPDT) configuration. The switch is commonly used in a variety of electronic devices for on-off or signal selection functions.
Applications:
- Consumer Electronics: Used in portable audio players, remote controls, and other handheld devices for power or mode selection.
- Telecommunications Equipment: Found in mobile phones, routers, and other communication devices for various switching functions.
- Industrial Control Systems: Used in control panels, test equipment, and other industrial applications for signal routing or equipment configuration.
- Medical Devices: Used in medical instruments for selecting different operating modes or functions.
- Computer Peripherals: Found in mice, keyboards, and other peripherals for switch functions.
- Instrumentation: Used for range or function switching in various types of instruments.
Features:
- Subminiature Size: Compact design makes it suitable for high-density PCB layouts.
- Surface Mount Design (SMD): Designed for automated assembly processes.
- SPDT Configuration: Provides a single pole double throw switching function.
- High Reliability: Designed for long life and reliable performance.
- Tape and Reel Packaging: Suitable for automated pick and place equipment.
- RoHS Compliant: Meets environmental regulations for hazardous substances.
Benefits:
- Space Saving: The subminiature size allows for efficient use of PCB space.
- Easy Assembly: Surface mount design simplifies assembly and reduces manufacturing costs.
- Reliable Switching: Ensures consistent and reliable switching performance.
- Long Lifespan: Provides a long service life, reducing the need for frequent replacements.
- Automated Assembly: Tape and reel packaging facilitates automated assembly processes.
Additional Details:
The SDA06H0SB switch is typically constructed with a durable plastic housing and silver-plated contacts for reliable electrical performance. The switch has a typical contact rating of 0.3A at 6VDC. It is designed to withstand a wide range of environmental conditions, including temperature and humidity. The operating temperature range is typically from -30°C to +85°C. The switch is available in tape and reel packaging for automated assembly. The actuator type is a slide. The terminal type is surface mount solder pads. The mechanical life is rated for a minimum of 10,000 cycles. The dielectric strength is typically 500VAC between terminals.
