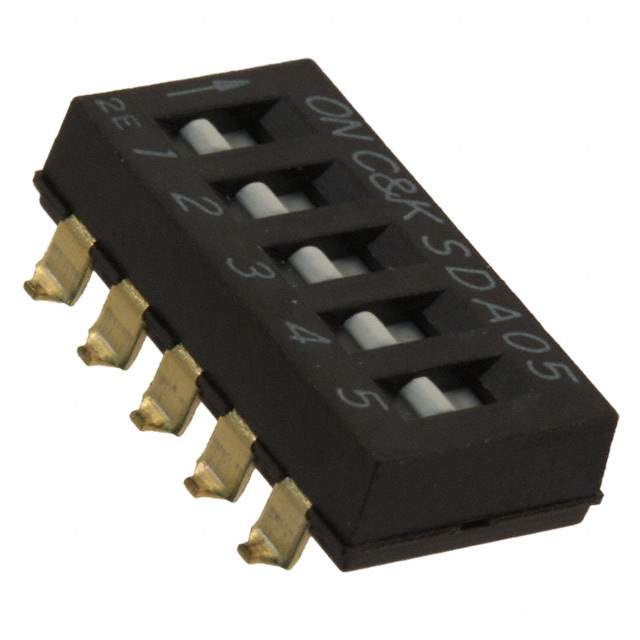

SDA05H0SBD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 5
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.175" (4.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.578" (14.68mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA05H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names *SDA05H0SBD,CKN6072,2266-SDA05H0SBD
Standard Package 30
Win Source Part Number 1095375-SDA05H0SBD
Ultra Librarian 3D Model Ultra Librarian SDA05H0SBD CAD Model

Description

The electronic component with Id 995766 is a switch belonging to the DIP Switches category, with 5 positions and a pitch of 0.100 inches (2.54mm).

  • Positions: 5
  • Pitch: 0.100 inches (2.54mm)
  • Termination Style: gull wing
  • Contact Finish: gold
  • Package: tube
  • Contact Material: beryllium copper
  • Voltage Rating: 24VDC
  • Height Above Board: 0.175 inches (4.45mm)
  • Length: 0.578 inches (14.68mm)
  • Standard Package: 30 switches
  • Mounting: SMD (SMT)
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: slide (standard)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: flush and recessed
  • Washable: no
  • Operating Temperature: -40°C to 85°C
  • Alternative Parts: BPA05SB, SDA05H1SBD, 218-4LPSTR, and 219-5MST
  • Current Rating: 25mA
  • REACH: unaffected
  • ECCN: EAR99
  • HTSUS: 8536.50.9065
