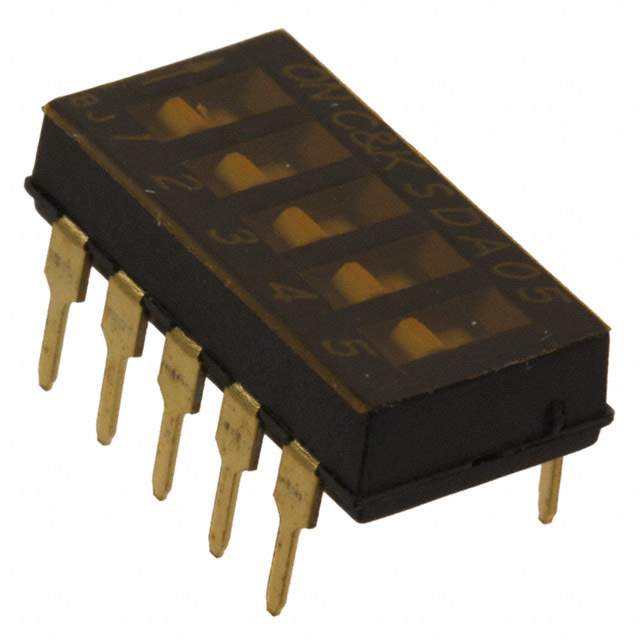

SDA05H0B Real Image
Same model may have multiple batches, images only for reference.

SDA05H0B

Part No SDA05H0B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 5 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA05H0B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 5
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.183" (4.65mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.578" (14.68mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA05H
Other Names CKN6069,*SDA05H0B
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233763-SDA05H0B
Ultra Librarian 3D Model Ultra Librarian SDA05H0B CAD Model

Description

The SDA05H0B from C&K is a SPST DIP switch with a slide actuator type.

  • Number of Positions: 5
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Seal: Tape seal
  • Contact Finish: Gold
  • Contact Material: Beryllium copper
  • Package: Tube
  • Standard Package: 30
  • Voltage Rating: 24VDC
  • Height Above Board: 0.183" (4.65mm)
  • Length: 0.578" (14.68mm)
  • Material: Polyphenylene Sulfide (PPS)
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush, recessed
  • Washable: Yes
  • Mounting Type: Through-hole
  • Temperature Range: -40°C to 85°C
