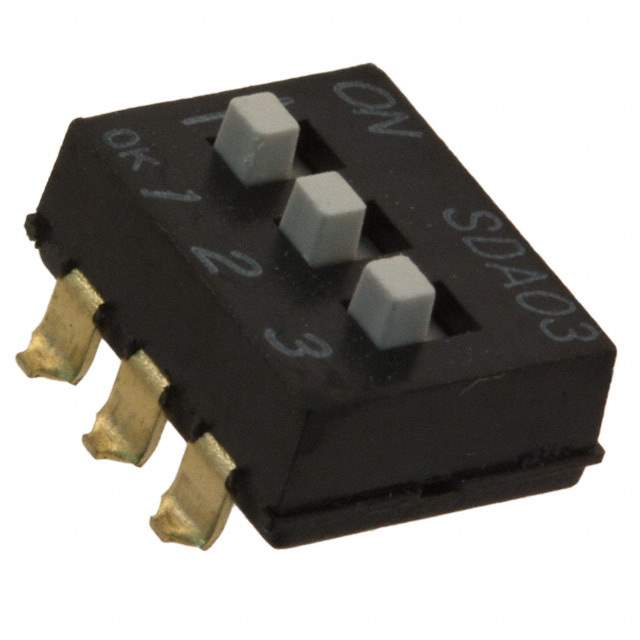

SDA03H1SBD Real Image
Same model may have multiple batches, images only for reference.

SDA03H1SBD

Part No SDA03H1SBD
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 3 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Datasheet
SDA03H1SBD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SDA
Package Tube
Circuit SPST
Number of Positions 3
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.214" (5.45mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.378" (9.60mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number SDA03H
Other Names 2266-SDA03H1SBD,*SDA03H1SBD,CKN6062
Standard Package 45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233767-SDA03H1SBD
Ultra Librarian 3D Model Ultra Librarian SDA03H1SBD CAD Model

Description

The COMAX SDA series SDA03H1SBD DIP switch is a single-pole, single-throw switch with a circuit of SPST.

  • Circuit: SPST
  • Termination Style: Gull-Wing
  • Mounting Type: Surface-Mount
  • Actuator Type: Slide (standard)
  • Actuator Level: Raised
  • Number of Positions: 3
  • Pitch: 0.100 inches (2.54 mm)
  • Win Source Part Number: 1233767-SDA03H1SBD
  • Manufacturer: C&K
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.214 inches (5.45 mm)
  • Length: 0.378 inches (9.60 mm)
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
