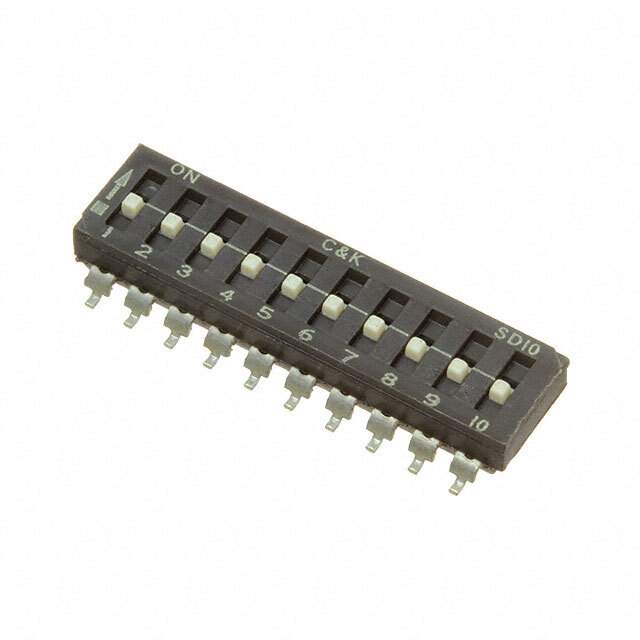

SD10H1SBD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.165" (4.20mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 1.058" (26.87mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD10H1
Other Names SER2LBKRDGNAU0A,SD10H1SBD,CKN11914,-SD10H1SBD
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233831-SD10H1SBD
Ultra Librarian 3D Model Ultra Librarian SD10H1SBD CAD Model

Description

The C&K SD series DIP switch is a reliable and high-quality switch for use in various electronic devices.

  • Number of Positions: 10
  • Circuit: SPST
  • Termination Style: Gull Wing
  • Voltage Rating: 25 V DC
  • Electrical Life: 2,000 cycles
  • Package: Tube
  • Ingress Protection: -
