Same model may have multiple batches, images only for reference.

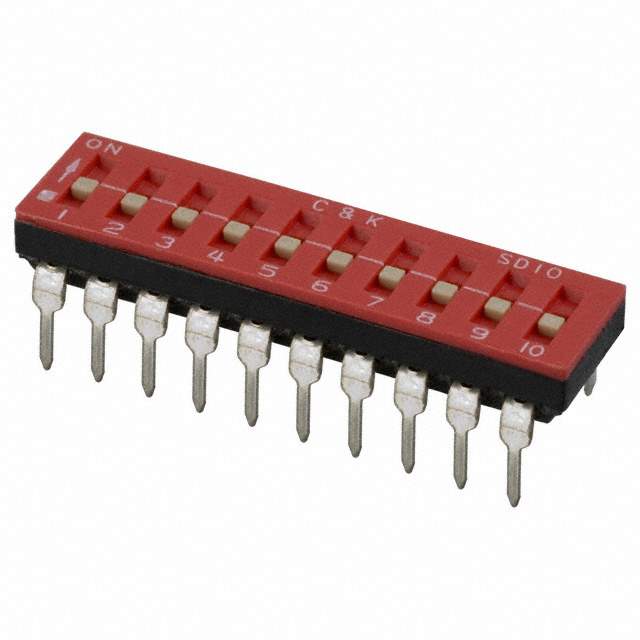

SD10H0B Real Image
Same model may have multiple batches, images only for reference.

SD10H0B

Part No SD10H0B
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 25V / Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 100mA 25VDC
Datasheet
SD10H0B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series SD
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 25VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.178" (4.52mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphthalamide (PPA)
Length 1.058" (26.87mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number SD10H0
Other Names CKN6133,*SD10H0B,2266-SD10H0B
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233832-SD10H0B
Ultra Librarian 3D Model Ultra Librarian SD10H0B CAD Model

Description

The SD10H0B from C&K is a SPST DIP switch.

  • Number of Positions: 10
  • Pitch: 0.100" (2.54mm), Full
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 25VDC
  • Current Rating: 100mA
  • Actuator Type: Slide (standard)
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Height Above Board: 0.178" (4.52mm)
  • Length: 1.058" (26.87mm)
  • Body Material: Polyphthalamide (PPA)
  • Circuit: SPST
  • Operating Temperature: -40°C to 85°C
  • Package: Tube
  • Standard Package: 20
