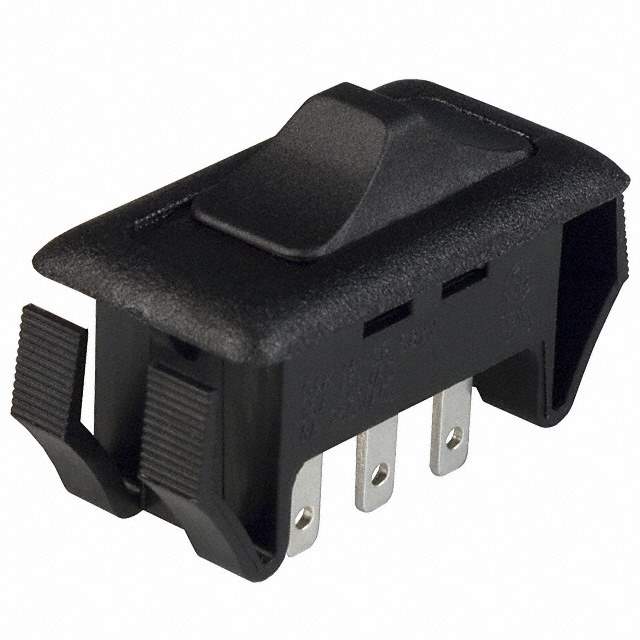

S802C21S207Q Real Image
Same model may have multiple batches, images only for reference.

S802C21S207Q

Part No S802C21S207Q
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE DPDT 15A 125V / Slide Switch DPDT Panel Mount, Snap-In
Datasheet
S802C21S207Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Slide Switches
Mfr C&K
Series S
Package Bulk
Circuit DPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Snap on Cap
Actuator Length 5.08mm
Contact Material Copper
Contact Finish Silver
Mounting Type Panel Mount, Snap-In
Termination Style Quick Connect - 0.110" (2.8mm)
Features Black Actuator
Temperature Range - Operating -30°C ~ 65°C
Actuator Material Polyamide (PA66), Nylon 6/6
Switch Travel 4.57mm
Electrical Life 10,000 Cycles
Base Product Number S802C21
Other Names *S802C21S207Q,CKC5105,2266-S802C21S207Q
Standard Package 72
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1233171-S802C21S207Q
Ultra Librarian 3D Model Ultra Librarian S802C21S207Q CAD Model

Description

This switch is a part of the S series and has a DPDT circuit.

  • Series: S series
  • Circuit: DPDT
  • Termination Style: Quick Connect of 0.110 inches
  • Voltage Rating: 125V AC
  • Actuator Material: Polyamide and nylon 6/6
  • Contact Material: Copper with a silver finish
  • Actuator Type: Snap-On Cap
  • Actuator Length: 5.08mm
  • Switch Travel: 4.57mm
  • Operating Temperature Range: -30°C to 65°C
  • Electrical Life: 10,000 cycles
  • Mounting: Panel Mountable and Snap-In
  • Package: Bulk
  • Standard Packages: 72
  • ECCN: EAR99
  • REACH: REACH unaffected
