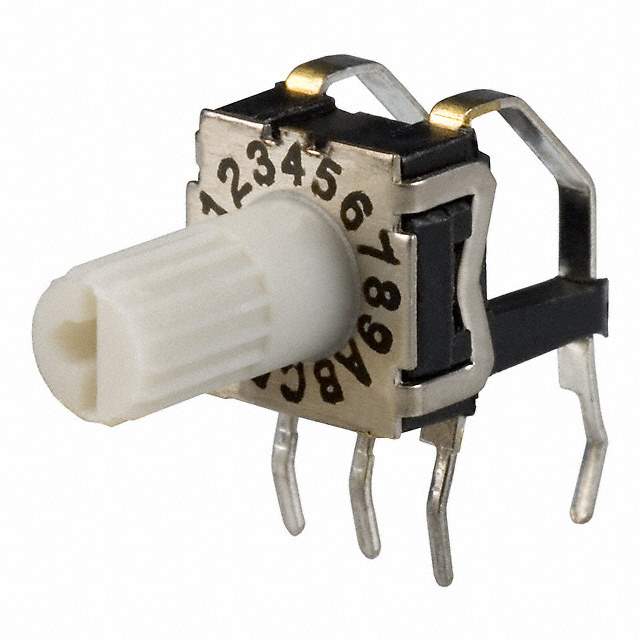

RTE1601V44 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr C&K
Series RTE
Package Tube
Product Status Obsolete
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 100mA
Voltage Rating 30VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Bronze
Contact Finish Gold
Height Above Board 0.335" (8.50mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -25°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.291" (7.40mm)
Mechanical Life 20,000 Steps
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1314994-RTE1601V44
Ultra Librarian 3D Model Ultra Librarian RTE1601V44 CAD Model

Description

The RTE1601V44 is a 16-position DIP switch from the RTE series of C&K.

  • Circuit: Hexadecimal
  • Actuator: Rotary, Raised Level
  • Voltage Rating: 30VDC
  • Current Rating: 100mA
  • Contacts: Gold-Plated
  • Body Material: PPS
  • Mounting Type: Through-Hole, Right-Angle
