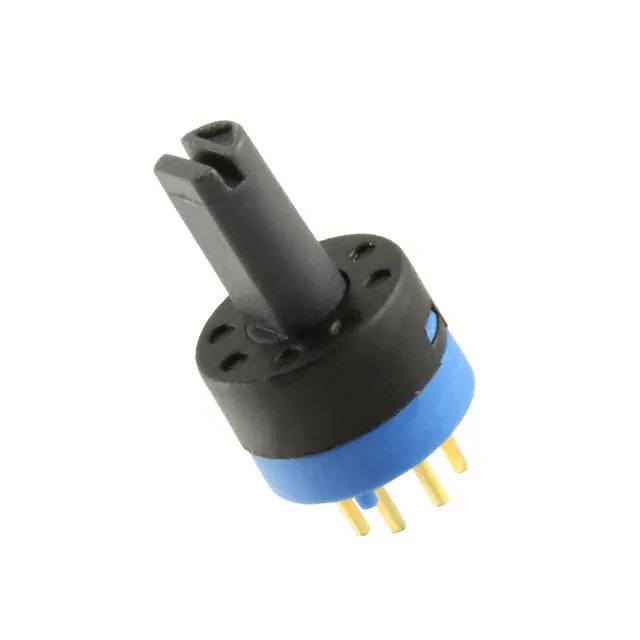

Same model may have multiple batches, images only for reference.
RM103772BCB C&K Components
Same model may have multiple batches, images only for reference.

RM103772BCB

Part No RM103772BCB
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 3POS 500MA 24V
Datasheet
RM103772BCB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rotary Switches
Mfr C&K
Series RM
Package Tray
Product Status Active
Number of Positions 3
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP3T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 24 V
Actuator Type Flatted (4.2mm Dia), Slotted
Actuator Length 7.70mm
Angle of Throw 45°
Contact Material Brass
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features -
Depth Behind Panel 7.37mm
Panel Cutout Dimensions -
Base Product Number RM103
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Win Source Part Number 1375944-RM103772BCB
Ultra Librarian 3D Model Ultra Librarian RM103772BCB CAD Model

Description

The electronic component with Id 1188078 is a rotary switch manufactured by C&K.

  • Number of Decks: Single
  • Number of Poles: Single Pole
  • Number of Positions: Three
  • Current Rating: 500mA (DC)
  • Voltage Rating: 24V DC
  • Contact Finish: Gold
  • Contact Material: Brass
  • Actuator Type: Flatted (4.2mm diameter) with a slotted design
  • Termination Style: PC Pin
  • Actuator Length: 7.70mm
  • Product Status: Active
