Same model may have multiple batches, images only for reference.

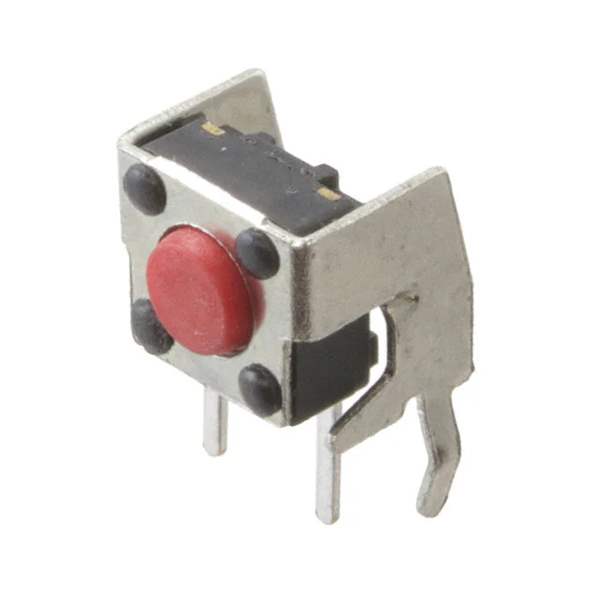

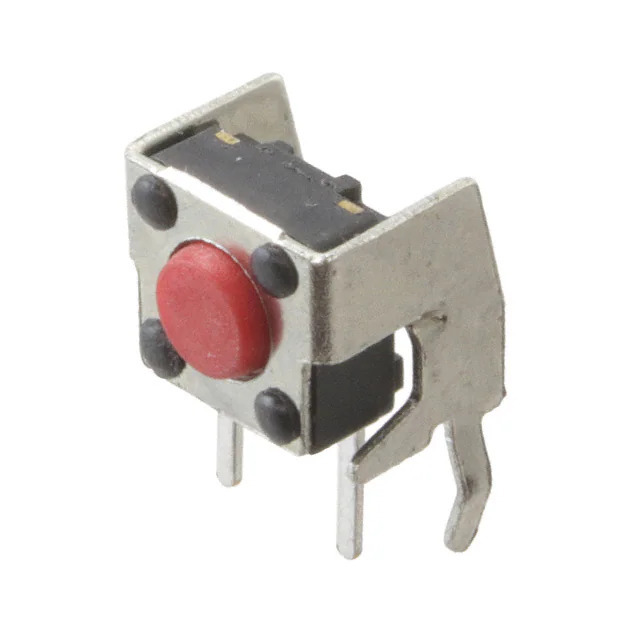

PTS645VK312LFS

Name: PTS645VK312LFS
Brand: C&K Components
SKU: 1376532
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTS645VK312LFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet	PTS645VK312LFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	C&K
Series	PTS645
Package	Bulk
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Through Hole, Right Angle
Actuator Height off PCB, Vertical	-
Actuator Length, Right Angle	3.15mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	7.50mm x 7.10mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	260gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	Polyamide (PA66), Nylon 6/6
Switch Travel	-
Mechanical Life	100,000 Cycles
Base Product Number	PTS645
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376532-PTS645VK312LFS
Ultra Librarian 3D Model	Ultra Librarian PTS645VK312LFS CAD Model

Description

The PTS645VK312LFS is a tactile switch from the PTS645 series manufactured by C&K.

Mounting Type: Through-Hole, Right-Angle
Termination Style: PC Pin
Mechanical Life: 100,000 Cycles
Contact Rating: 0.05A @ 12VDC
Circuit: SPST-NO
Actuator Type: Standard
Switch Function: Off-Mom
Operating Force: 260gf
Actuator Length: 3.15mm
Illumination: Non-Illuminated
Outline Dimension: 7.50mm x 7.10mm
