Same model may have multiple batches, images only for reference.

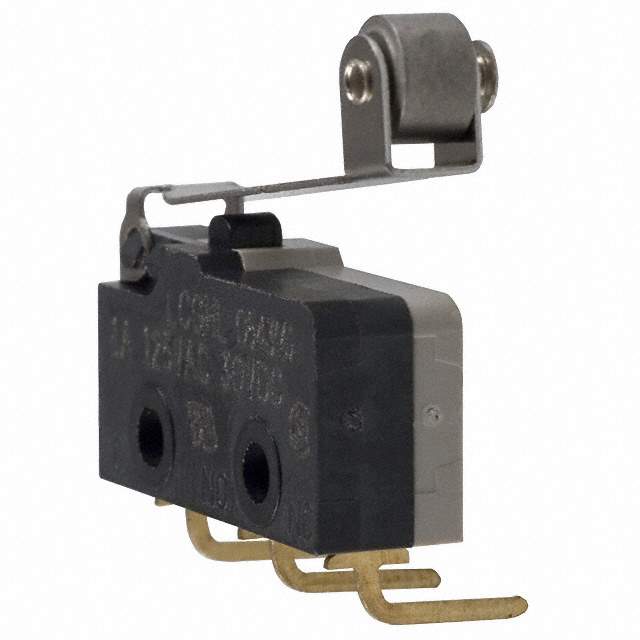

LCGHF5A10LC Real Image
Same model may have multiple batches, images only for reference.

LCGHF5A10LC

Part No LCGHF5A10LC
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 1A 125V / Switch SPDT Through Hole
Datasheet
LCGHF5A10LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series LC
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Through Hole
Termination Style PC Pin
Operating Force 57gf
Release Force 12gf
Pretravel 0.140" (3.6mm)
Differential Travel 0.034" (0.86mm)
Overtravel 0.029" (0.74mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.560" (14.2mm)
Electrical Life 6,000 Cycles
Base Product Number LCGHF5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Names CKN1425,*LCGHF5A10LC,2266-LCGHF5A10LC,LCGHF5A10LC-ND
Standard Package 160
Win Source Part Number 1069051-LCGHF5A10LC
Ultra Librarian 3D Model Ultra Librarian LCGHF5A10LC CAD Model

Description

The C&K LC series limit switches are designed for a variety of applications.

  • Series: LC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever/Roller
  • Electrical Life: 6,000 cycles
  • Operating Force: 57gf
  • Release Force: 12gf
  • Mounting: Through Hole
  • Package: Tray
  • Operating Temperature: -25°C to 85°C
  • HTSUS: 8536.50.7000
  • Manufacturer: C&K
