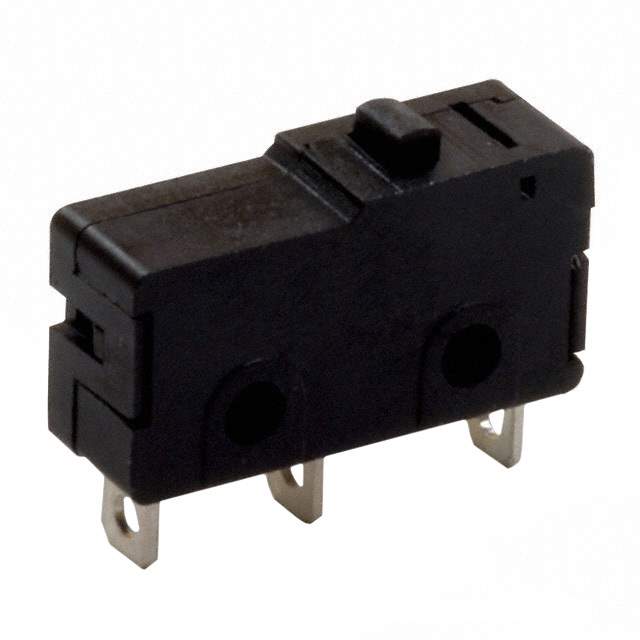

LCA10150P00SC Real Image
Same model may have multiple batches, images only for reference.

LCA10150P00SC

Part No LCA10150P00SC
Manufacturer C&K Components
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT Chassis Mount
Datasheet
LCA10150P00SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr C&K
Series LCA
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Operating Force 150gf
Release Force 25gf
Pretravel 0.043" (1.1mm)
Differential Travel 0.008" (0.2mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -40°C ~ 125°C
Operating Position 0.335" (8.5mm)
Electrical Life 10,000 Cycles
Mechanical Life 300,000 Cycles
Base Product Number LCA10150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Names *LCA10150P00SC,LCA10A140P00SC,*LCA10A140P00SC,CKN9174
Standard Package 100
Win Source Part Number 1052850-LCA10150P00SC
Ultra Librarian 3D Model Ultra Librarian LCA10150P00SC CAD Model

Description

The 1052850-LCA10150P00SC is a limit switch with a SPDT circuit and an on-mom switch function.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round (Pin Plunger)
  • Electrical Life: 10,000 Cycles
  • Operating Force: 150gf
  • Mechanical Life: 300,000 Cycles
  • Release Force: 25gf
  • Pretravel: 0.043" (1.1mm)
  • Differential Travel: 0.008" (0.2mm)
  • Overtravel: 0.015" (0.4mm)
  • Operating Position: 0.335" (8.5mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -40°C to 125°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 10A (AC)
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.50.7000
  • Manufacturer: C&K
  • Available from: Win Source with part number 1052850-LCA10150P00SC
