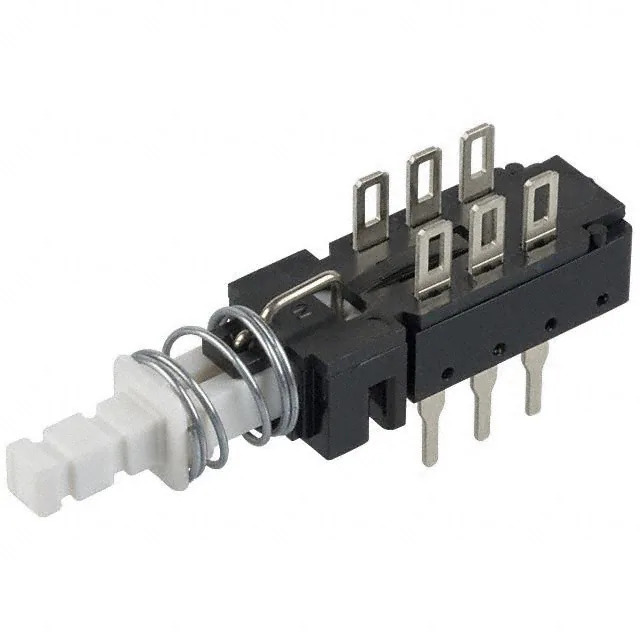

F2UEE C&K Components
Same model may have multiple batches, images only for reference.

F2UEE

Part No F2UEE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH DPDT 0.5A 125V
Datasheet
F2UEE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series F
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 500mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin, Solder Lug
Ingress Protection -
Features -
Panel Cutout Dimensions -
Temperature Range - Operating -40°C ~ 70°C
Mechanical Life 100,000 Cycles
Electrical Life 100,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1376196-F2UEE
Ultra Librarian 3D Model Ultra Librarian F2UEE CAD Model

Description

The F2UEE is a standard pushbutton switch from C&K's F series.

  • Switch Function: On-On
  • Circuit: DPDT
  • Mounting Type: Through Hole, Right Angle
  • Current Rating: 500mA (AC/DC)
  • Voltage Ratings: 125VAC, 30VDC
  • Actuator/Cap Color: White Plunger
  • Illumination: None
  • Mechanical Life: 100,000 cycles
  • Electrical Life: 100,000 cycles
  • REACH: Unaffected
  • ECCN: EAR99
  • Packaging: Bulk
