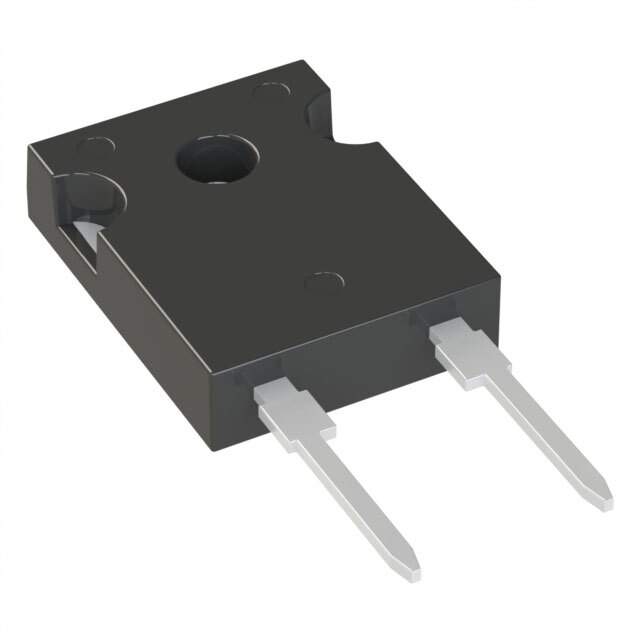

STTH60L04W - Ultrafast High Voltage Rectifier

The STTH60L04W, designed and manufactured by STMicroelectronics, is an ultrafast high voltage rectifier that is well-suited for applications requiring efficient and reliable high-speed switching. This power diode is specifically engineered to enhance the performance of switch-mode power supplies (SMPS), high-frequency converters, freewheeling diodes, and energy recovery circuits in a wide range of electronic equipment.

With a repetitive reverse voltage (VRRM) of up to 400 volts and an average forward current (IF(AV)) of 60 amperes at a case temperature of 125°C, the STTH60L04W is capable of handling high power density designs. The device's ultrafast recovery time (trr) of less than 40 nanoseconds minimizes power losses and improves efficiency, making it an excellent choice for high-frequency power switching applications.

The STTH60L04W features a dual diode configuration, encapsulated in an insulated TO-247 package, which provides electrical isolation of the chip from the heatsink, enhancing thermal management and simplifying the assembly process. This package also offers high junction temperature capability, which contributes to the device's reliability and longevity under stressful conditions.

Key features of the STTH60L04W include:

• Low forward voltage drop (VF) to ensure low conduction losses
• Soft recovery characteristics to reduce electromagnetic interference (EMI)
• High surge current capability for robust performance during transient conditions
• Compliance with RoHS and halogen-free directives for environmental sustainability

Designed with the state-of-the-art silicon technology, the STTH60L04W stands out for its combination of high efficiency, fast switching speed, and thermal performance. Its rugged design ensures that it can withstand the rigors of industrial environments, making it a reliable choice for power designers looking to optimize their systems for both performance and cost.

Whether it's for power factor correction stages, snubber circuits, or any other high-speed rectification needs, the STTH60L04W is a versatile component that delivers consistent, high-quality performance. Its technical excellence and design robustness make it a go-to choice for engineers and professionals in the electronics industry.
