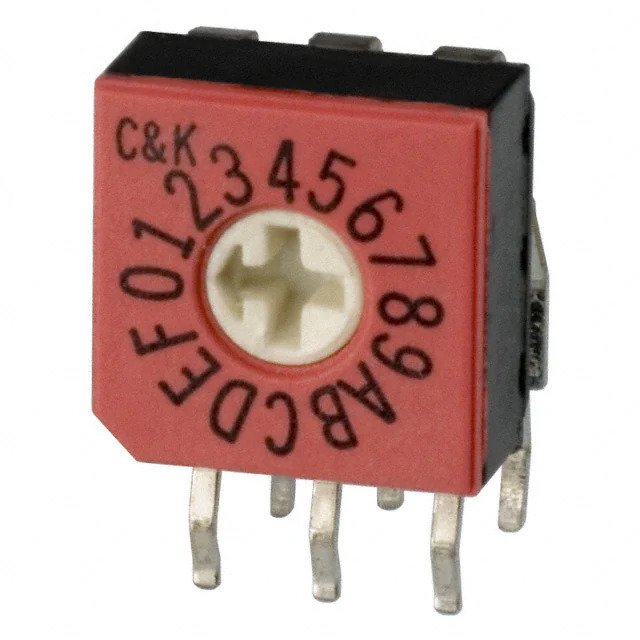

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr C&K
Series CD
Package Tube
Product Status Active
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 0.4VA
Voltage Rating 20VAC/DC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.340" (8.64mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Process Sealed
Temperature Range - Operating -25°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.315" (8.00mm)
Mechanical Life 20,000 Steps
Electrical Life 20,000 Steps
Base Product Number CD16RM0A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376108-CD16RM0AB
Ultra Librarian 3D Model Ultra Librarian CD16RM0AB CAD Model

Description

The 1376108-CD16RM0AB is a DIP switch from C&K's CD series.

  • Type: Hexadecimal
  • Positions: 16
  • Current Rating: 0.4VA
  • Voltage Rating: 20VAC/DC
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Actuator Type: Rotary for Tool
  • Actuator Level: Flush, Recessed
  • Mounting: Through Hole, Right Angle
  • Pitch: 0.100" (2.54mm)
  • Mechanical Life: 20,000 steps
  • Electrical Life: 20,000 steps
  • Body Material: Polyphenylene Sulfide (PPS)
  • Product Status: Active
  • REACH Status: Unaffected
