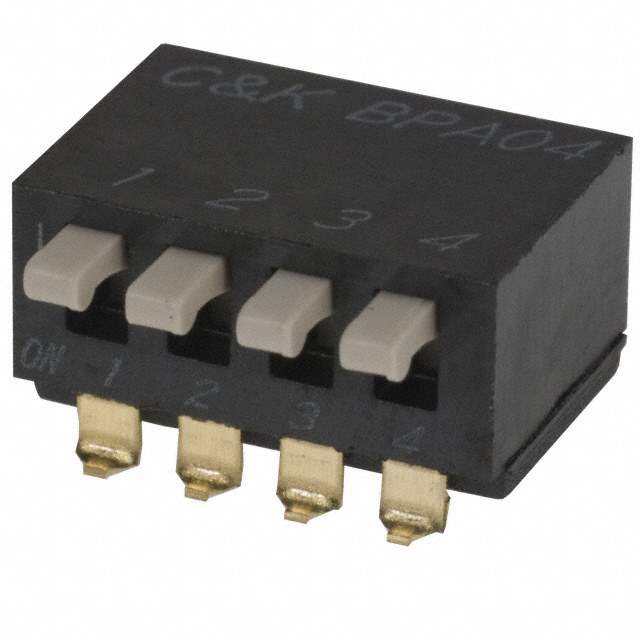

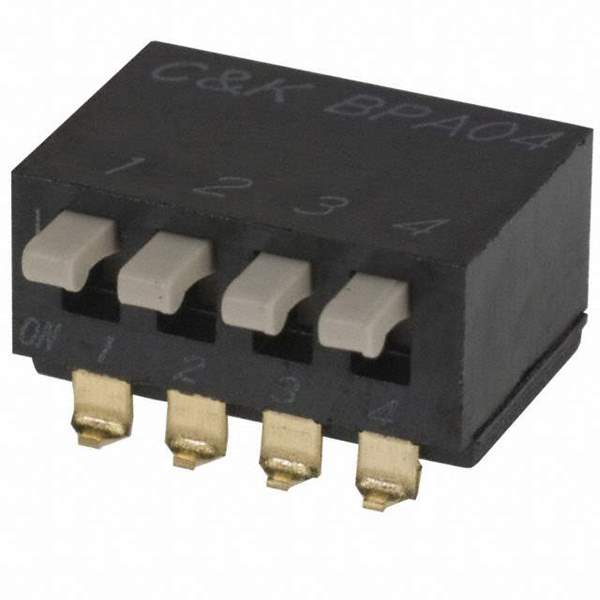

BPA04SB Real Image
Same model may have multiple batches, images only for reference.

BPA04SB

Part No BPA04SB
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 5V
Datasheet
BPA04SB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 4
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.274" (6.95mm)
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.476" (12.09mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Win Source Part Number 039662-BPA04SB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BPA04SB CAD Model

Description

BPA04SB

The BPA04SB stands out due to its advanced features and adaptability in various electronic projects. It ensures high-quality functionality and efficiency.

  • IoT devices
  • Wireless communication systems
  • Industrial automation

Features and Benefits:

  • High signal integrity
  • Wide operating temperature range
  • Compact form factor
  • Easy to implement

Choose BPA04SB for applications demanding reliable and high-performance operation coupled with flexibility.
