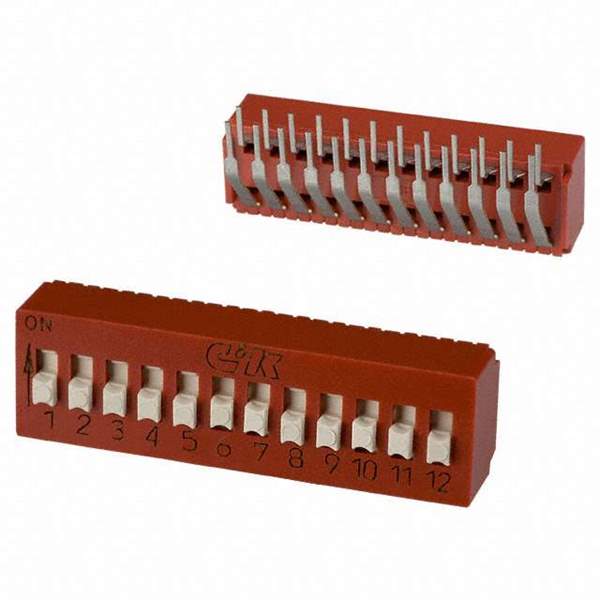

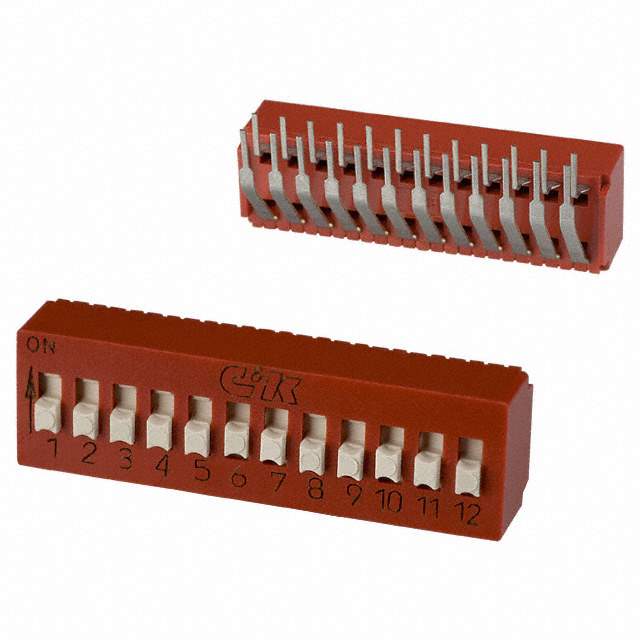

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Tube/Rail
Status Active
Circuit SPST
Number of Positions 12
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.380" (9.64mm)
Mounting Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polybutylene Terephthalate (PBT), Glass Filled
Length 1.280" (32.51mm)
Temperature Range - Operating -40°C to 85°C
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
Win Source Part Number 200949-BD12AV
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BD12AV CAD Model

Description

BD12AV - High-Efficiency Voltage Regulator

The BD12AV is a robust high-efficiency voltage regulator designed for a variety of applications requiring stable power supply. It ensures reliable performance with minimal energy loss, making it ideal for both consumer electronics and industrial applications.

  • Applications:
    • Power management in microcontrollers
    • Battery-operated devices
    • Telecommunications equipment
  • Features and Benefits:
    • Low dropout voltage for enhanced efficiency
    • Overcurrent protection to prevent damage
    • Wide operating temperature range for versatile use
    • Compact package design for space-constrained applications
  • Additional Details: The BD12AV offers a seamless integration into existing circuits, ensuring uninterrupted power supply and performance. Its compact form factor allows for easy installation in modern electronic designs.
