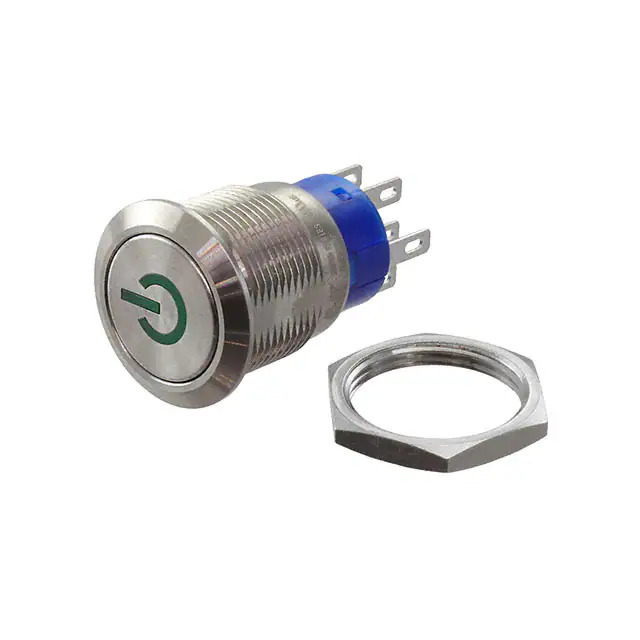

ATP19-SL4-612-M0DE-03Q C&K Components
Same model may have multiple batches, images only for reference.

ATP19-SL4-612-M0DE-03Q

Part No ATP19-SL4-612-M0DE-03Q
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH ANTI-VANDAL 19MM SEALED S
Datasheet
ATP19-SL4-612-M0DE-03Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series ATP19
Package Tray
Product Status Active
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 28 V
Actuator Type Round, Button, Flush
Actuator Marking Power Symbol
Color - Actuator/Cap Silver
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 12 VDC
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Panel Cutout Dimensions Circular - 19.20mm Dia
Temperature Range - Operating -20°C ~ 55°C
Mechanical Life 500,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number ATP19
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376066-ATP19-SL4-612-M0DE-03Q
Ultra Librarian 3D Model Ultra Librarian ATP19-SL4-612-M0DE-03Q CAD Model

Description

The ATP19-SL4-612-M0DE-03Q is an anti-vandal illuminated pushbutton switch from C&K.

  • Mounting Type: Panel Mount
  • Actuator Type: Front
  • Voltage Rating: 250V AC, 28V DC
  • Current Rating: 3A AC/DC
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator: Round, Button-Shaped, Flush, Silver
  • Marking: Power Symbol
  • Illumination: Green LED, 12VDC
  • Termination: Solder & Quick Connect 0.110" (2.8mm)
  • Panel Cutout: 19.20mm Diameter (Circular)
  • Mechanical Life: 500,000 Cycles
  • Electrical Life: 50,000 Cycles
