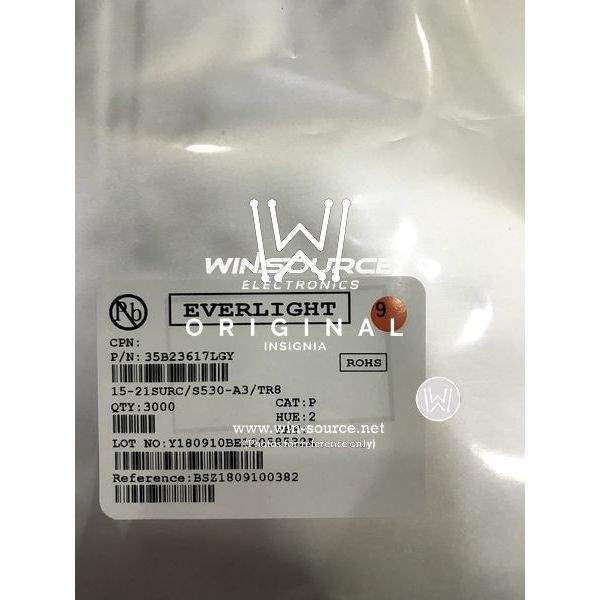

Same model may have multiple batches, images only for reference.

15-21SURC/S530-A3/TR8

Name: 15-21SURC/S530-A3/TR8
Brand: Everlight Electronics Co Ltd
SKU: 415810
Availability: InStock
Rating: 4.85 (195 reviews)

Get a Quote

Part No	15-21SURC/S530-A3/TR8
Manufacturer	Everlight Electronics Co Ltd
Catalog	LED Indication - Discrete
Description	LED RED CLEAR 1206 SMD
Datasheet	15-21SURC/S530-A3/TR8 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Optoelectronics
Manufacturer	Everlight Electronics Co Ltd
Packaging	Reel - TR
Status	Active
Color	Red
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	54mcd
Lens Style/Size	Rectangle with Flat Top, 2.00mm x 1.50mm
Forward Voltage	2V
Current - Test	20mA
Viewing Angle	140°
Mounting	SMD (SMT)
Wavelength - Dominant	624nm
Wavelength - Peak	632nm
Case / Package	1206
Height (Max)	1.00mm
Win Source Part Number	1001521-15-21SURC/S530-A3/TR8
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	15-21SURC-S530-A3/TR8
Introduction Date	June 30, 2003
ECCN	EAR99
Country of Origin	Taiwan
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian 15-21SURC/S530-A3/TR8 CAD Model

Alternative Products

Description

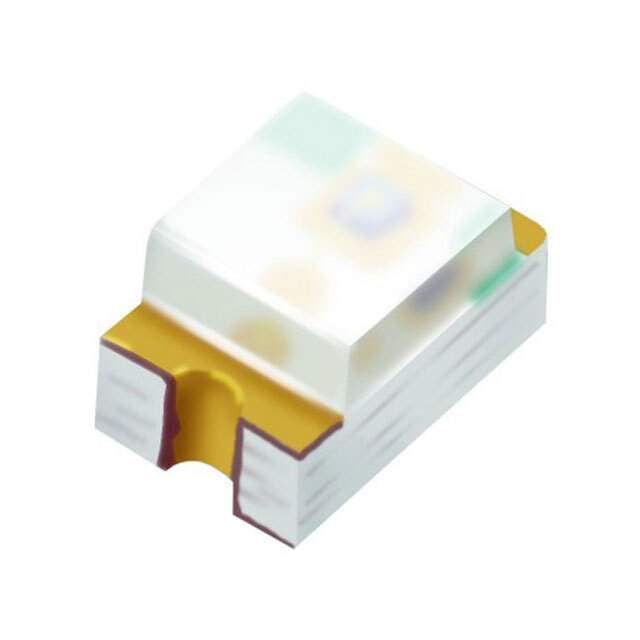

The Everlight Electronics Co Ltd 15-21SURC/S530-A3/TR8 is a red SMD LED with a rectangular flat top lens.

Millicandela Rating: 54mcd
Viewing Angle: 140 degrees
Forward Voltage: 2V
Current Test: 20mA
Wavelength-Dominant: 624nm
Wavelength-Peak: 632nm
RoHS Compliant: Yes
