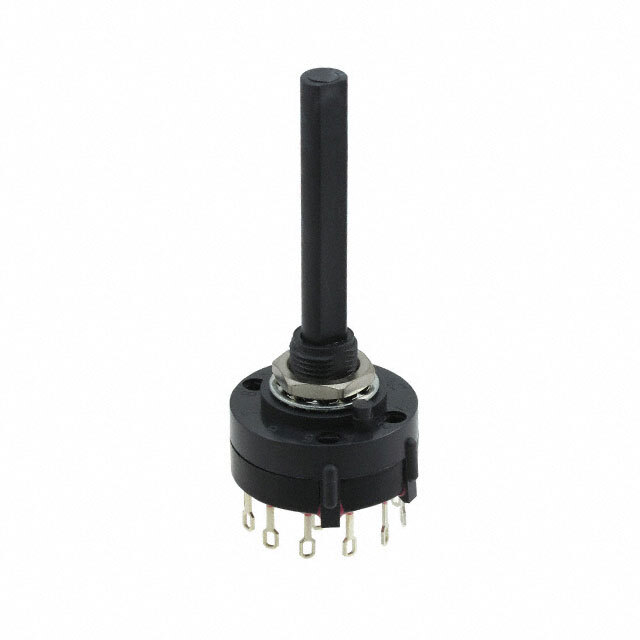

Same model may have multiple batches, images only for reference.
A30415RSZQE C&K Components – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

A30415RSZQE

Part No A30415RSZQE
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 4POS 2.5A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Positions 4
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 3
Circuit per Deck 3P4T
Contact Timing Shorting (MBB)
Current Rating (Amps) 2.5A (AC), 350mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 38.10mm
Angle of Throw 30°
Contact Material Silver (Ag)
Contact Finish Silver
Mounting Type Panel Mount
Termination Style Solder Lug
Features Epoxy Sealed Terminals
Depth Behind Panel 20.83mm
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1559370-A30415RSZQE
Ultra Librarian 3D Model Ultra Librarian A30415RSZQE CAD Model

Description

N
