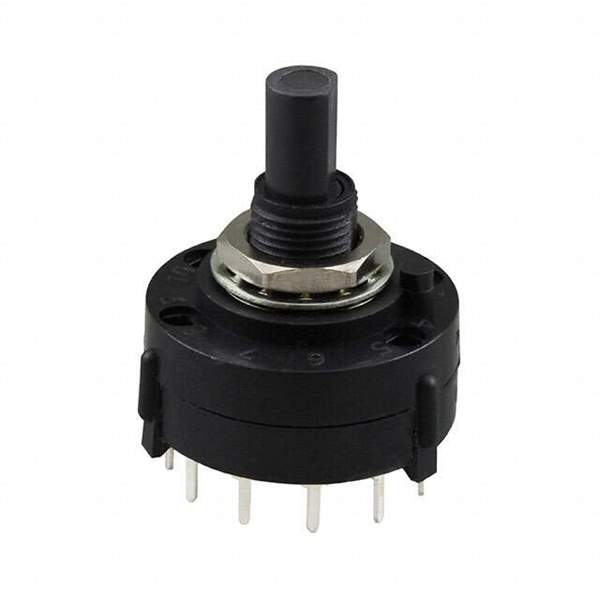

A10603RNCQ Real Image
Same model may have multiple batches, images only for reference.

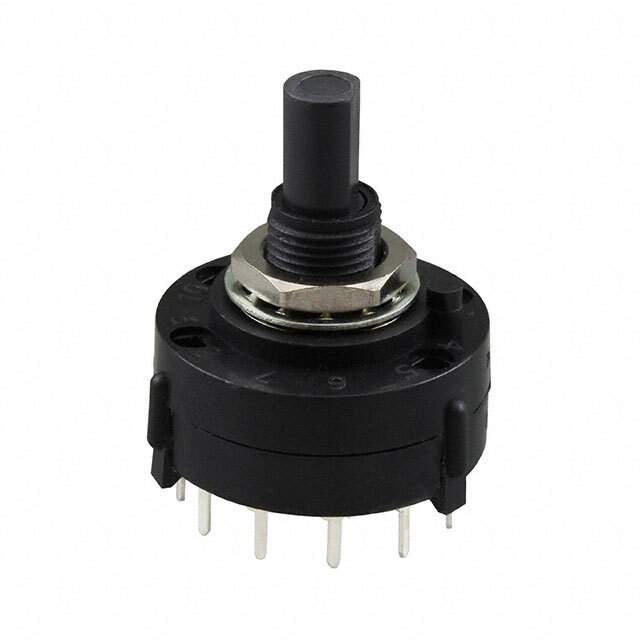

A10603RNCQ

Part No A10603RNCQ
Manufacturer C&K Components
Catalog Rotary Switches
Description SWITCH ROTARY 6POS 2.5A 125V / Rotary Switch 6 Position SP6T 2.5A (AC), 350mA (DC) 125 VAC Panel Mount, Through Hole
Datasheet
A10603RNCQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr C&K
Series A
Package Tray
Number of Positions 6
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 1
Circuit per Deck SP6T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 2.5A (AC), 350mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Flatted (6.35mm Dia)
Actuator Length 9.53mm
Angle of Throw 30°
Contact Material Silver (Ag)
Contact Finish Silver
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Depth Behind Panel 14.48mm
Panel Cutout Dimensions Circular - 9.80mm Dia
Base Product Number A10603RN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9020
Other Names A10603RNCQ-ND,*A10603RNCQ,-A10603RNCQ,CKN11064
Standard Package 36
Win Source Part Number 1029825-A10603RNCQ
Ultra Librarian 3D Model Ultra Librarian A10603RNCQ CAD Model

Description

The A10603RNCQ rotary switch from C&K is a high-quality component designed for use in electronic devices.

  • Positions: Six
  • Actuator: Flatted, 6.35mm diameter
  • Contact Material: Silver (Ag)
  • Contact Finish: Silver
  • Contact Timing: Non-Shorting (BBM)
  • Stop: Fixed Index
  • Mounting: Panel-mountable, Through-hole
  • Angle of Throw: 30°
  • Depth Behind Panel: 14.48mm
  • Current Rating: 2.5A (AC), 350mA (DC)
  • Voltage Rating: 125V (AC and DC)
  • Package: Tray
  • Panel Cutout Dimensions: Circular, 9.80mm diameter
  • Series: A
  • Alternative Parts: A10605RNCQ, A10503RNCQ, A10703MNCQ, and SRBV170701
