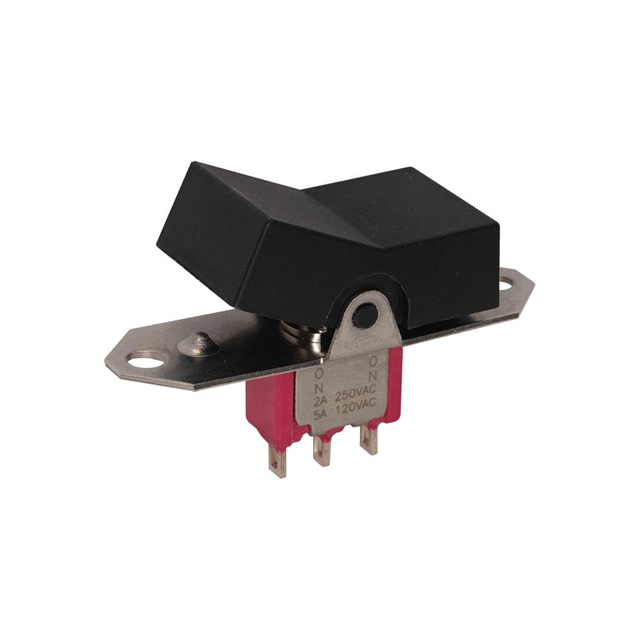

7405J3CGE2 Real Image
Same model may have multiple batches, images only for reference.

7405J3CGE2

Part No 7405J3CGE2
Manufacturer C&K Components
Catalog Rocker Switches
Description SWITCH ROCKER 4PDT 5A 120V / Rocker Switch 4PDT 5A (AC/DC) 120 V Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr C&K
Series 7000
Package Bulk
Mounting Type Through Hole
Circuit 4PDT
Switch Function Mom-Off-Mom
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Concave (Standard V)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 40,000 Cycles
Base Product Number 7405J
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names -7405J3CGE2
Standard Package 36
Win Source Part Number 1040011-7405J3CGE2
Ultra Librarian 3D Model Ultra Librarian 7405J3CGE2 CAD Model

Description

The 7000 series rocker switch is a high-quality switch with a concave (standard V) actuator type and 4PDT circuit.

  • Actuator Type: concave (standard V)
  • Circuit: 4PDT
  • Voltage Rating: 120 V AC, 28 V DC
  • Current Rating: 5A AC/DC
  • Electrical Life: 40,000 cycles
  • Mechanical Life: unspecified cycles
  • Mounting Type: through-hole
  • Operating Temperature Range: -30°C to 85°C
  • ECCN: EAR99 compliant
  • REACH: affected
  • Package: 36 switches
