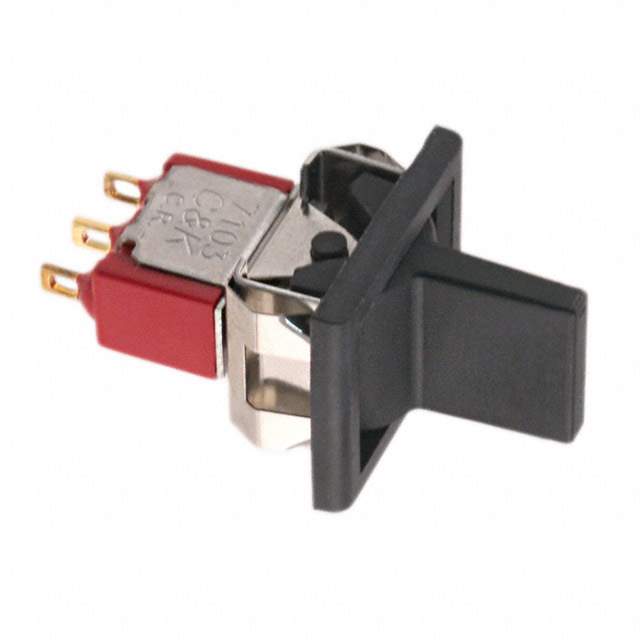

7103J61ZBE22 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr C&K
Series 7000
Package Tray
Mounting Type Panel Mount, Snap-In
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Paddle
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Solder Lug
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Temperature Range - Operating -30°C ~ 85°C
Electrical Life 40,000 Cycles
Base Product Number 7103J
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1338512-7103J61ZBE22
Ultra Librarian 3D Model Ultra Librarian 7103J61ZBE22 CAD Model

Description

The 7103J61ZBE22 from C&K is a rocker switch with SPDT circuit configuration and on-off-on switch function.

  • Circuit: SPDT
  • Switch Function: On-Off-On
  • Voltage Rating: 20V AC/DC
  • Panel Cutout: 15.24mm x 12.70mm
  • Actuator Type: Paddle
  • Actuator/Cap Color: Black
  • Mounting: Panel Mount, Snap-In
  • Operating Temperature: -30°C to 85°C
  • REACH Affected: Yes
  • HTSUS: 8536.50.9065
  • Mfr: C&K
  • Current Rating: 0.4VA (AC/DC)
  • Standard Package: 1
