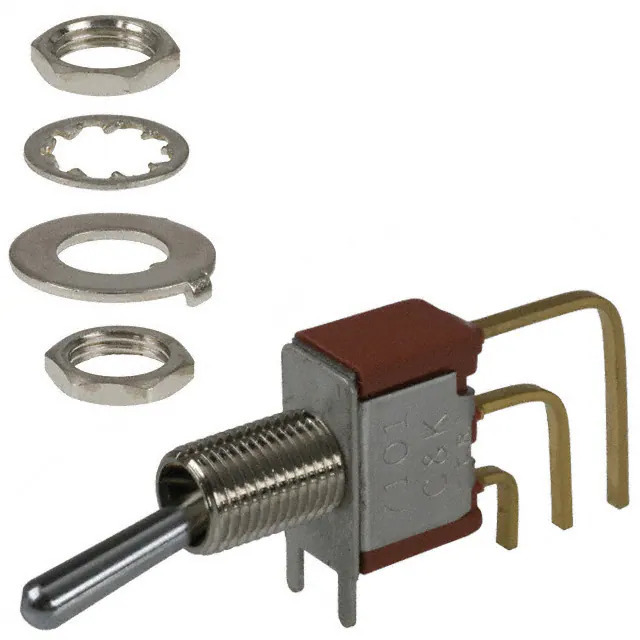

7101SYAV2BE C&K Components
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Tray
Product Status Active
Mounting Type Panel Mount, Right Angle, Vertical
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 10.67mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7101SY
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376025-7101SYAV2BE
Ultra Librarian 3D Model Ultra Librarian 7101SYAV2BE CAD Model

Description

The 7101SYAV2BE is a toggle switch from the 7000 series manufactured by C&K.

  • Series: 7000
  • Mounting Type: Panel Mount, Right Angle, Vertical
  • Termination Style: PC Pin
  • Current Rating (AC/DC): 0.4VA (AC/DC)
  • Voltage Rating (AC): 20V
  • Voltage Rating (DC): 20V
  • Circuit: SPDT
  • Actuator Type: Standard Round
  • Actuator Length: 10.67mm
  • Illumination: Non-Illuminated
  • Panel Cutout Dimensions: Circular - 6.35mm diameter
  • Electrical Life: 100,000 cycles
