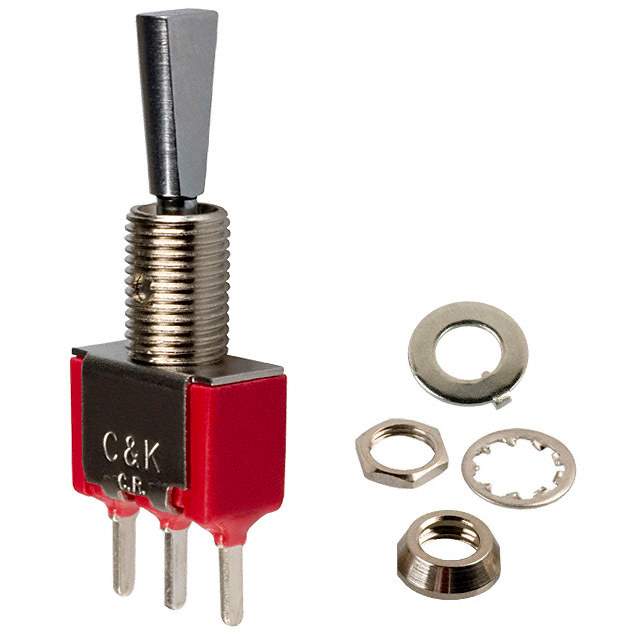

7101P3DCQE Real Image
Same model may have multiple batches, images only for reference.

7101P3DCQE

Part No 7101P3DCQE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 5A 120V / Toggle Switch SPDT Panel Mount
Datasheet
7101P3DCQE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Tray
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Flat Anti-Rotation
Actuator Length 13.21mm
Illumination Non-Illuminated
Termination Style PC Pin
Panel Cutout Dimensions Circular - 6.35mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7101P3
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1338589-7101P3DCQE
Ultra Librarian 3D Model Ultra Librarian 7101P3DCQE CAD Model

Description

The 7000 series toggle switch with Win Source Part Number 1338589-7101P3DCQE is a single-pole double-throw (SPDT) switch with an on-on switch function.

  • Voltage Rating (AC): 120V
  • Voltage Rating (DC): 28V
  • Package: Tray
  • Panel Cutout Dimensions: Circular - 6.35mm Dia
  • Bushing Thread: 1/4-40
  • Actuator Type: Flat Anti-Rotation
  • Actuator Length: 13.21mm
  • Electrical Life: 100,000 Cycles
  • Current Rating: 5A (AC/DC)
  • Actuator Material: Brass, Chrome Plated
  • Terminals: Epoxy Sealed
  • Mounting Type: Panel Mount
  • Operating Temperature Range: -30°C ~ 85°C
