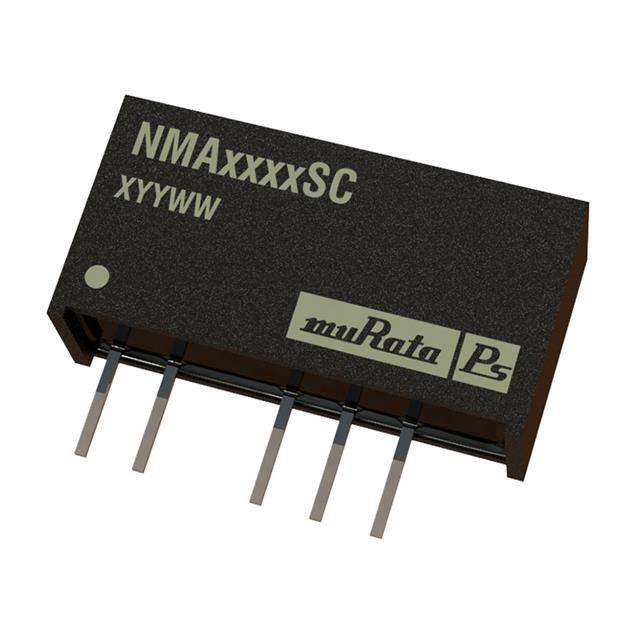

The NMA0515S is a DC-DC isolated power converter module manufactured by C&D Technologies (now Murata Power Solutions). It's designed to provide isolated power for sensitive circuits, offering protection from ground loops and voltage transients. These modules are typically used in industrial and telecommunications applications.

Applications:

• Industrial control systems
• Telecommunications equipment
• Medical devices
• Isolated power supplies for sensors
• Ground loop isolation

Features:

• Isolation: Provides electrical isolation between input and output.
• DC-DC Conversion: Converts a DC voltage to another DC voltage.
• Wide Input Voltage Range: Accommodates a variety of input voltage sources.
• Short Circuit Protection: Protects the module and connected circuits from damage.
• High Efficiency: Minimizes power losses.
• Compact Size: Allows for easy integration into space-constrained systems.

Benefits:

• Enhanced System Reliability: Isolation protects sensitive circuits from voltage transients and ground loops.
• Improved Safety: Isolation provides a barrier against electrical shock.
• Simplified System Design: Integrated DC-DC converter simplifies power supply design.
• Reduced Noise: Isolation minimizes noise coupling between input and output.
• Increased Design Flexibility: Wide input voltage range accommodates a variety of power sources.

Additional Details:

The NMA0515S typically accepts a 5VDC input and provides a 15VDC output. The isolation voltage is a key parameter, indicating the voltage the module can withstand between input and output. The module typically requires external capacitors for input and output filtering. Refer to the Murata Power Solutions datasheet for detailed electrical characteristics, application notes, and safety information. The operating temperature range, isolation voltage, and output current are critical parameters to consider when selecting this DC-DC converter for a specific application. The module is designed to meet relevant safety standards.
