Same model may have multiple batches, images only for reference.

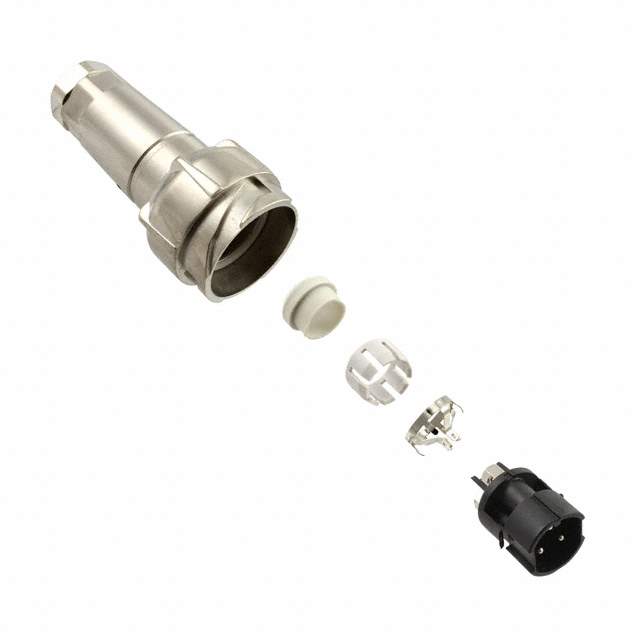

PXM7011/03P/ST/1315/SN Real Image
Same model may have multiple batches, images only for reference.

PXM7011/03P/ST/1315/SN

Part No PXM7011/03P/ST/1315/SN
Manufacturer Bulgin
Catalog Circular Connectors
Description CONN RCPT MALE 3POS NICKEL SCREW / 3 (2 Power + PE) Position Circular Connector Receptacle, Male Pins Screw
Datasheet
PXM7011/03P/ST/1315/SN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Bulgin
Series Buccaneer® 7000
Package Bulk
Connector Type Receptacle, Male Pins
Number of Positions 3 (2 Power + PE)
Mounting Type Free Hanging (In-Line)
Termination Screw
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Nickel
Color Silver
Ingress Protection IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features Backshell
Shielding Shielded
Current Rating (Amps) 25A
Voltage Rating 600V
Cable Opening 0.512" ~ 0.591" (13.00mm ~ 15.00mm)
Temperature Range - Operating -40°C ~ 120°C
Backshell Material, Plating Zinc Alloy, Nickel
Contact Material Brass
Base Product Number PXM7011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Names 2266-PXM7011/03P/ST/1315/SN,708-1813
Standard Package 30
Win Source Part Number 1002852-PXM7011/03P/ST/1315/SN
Ultra Librarian 3D Model Ultra Librarian PXM7011/03P/ST/1315/SN CAD Model

Description

The PXM7011/03P/ST/1315/SN is a 3 position male pin receptacle connector manufactured by Bulgin.

  • Series: Buccaneer® 7000
  • Package: Bulk
  • Voltage Rating: 600V
  • Current Rating: 25A
  • Shielded: Yes
  • Ingress Protection: IP66/IP68/IP69K (dust tight, water-resistant, and waterproof)
  • Temperature Range: -40°C to 120°C
  • Material: Zinc alloy
  • Finish: Nickel
