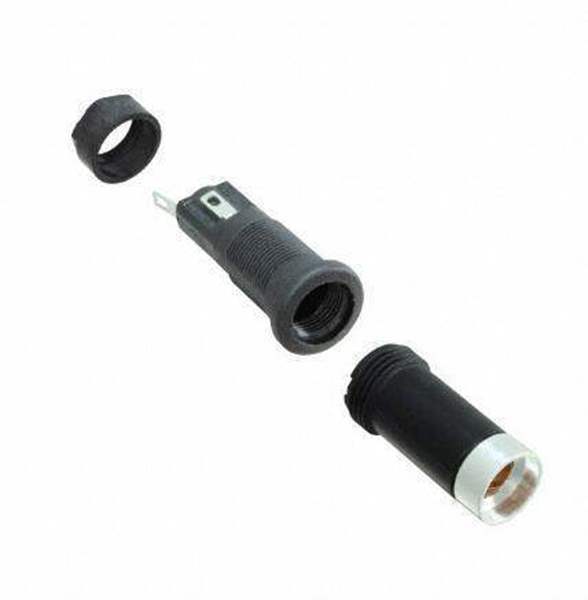

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Bulgin
Category Circuit Protection Fuseholders
Packaging  Bulk
Part Status Active
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Termination Style Solder Lug
Contact Material Brass
Contact Finish Silver
Win Source Part Number WS1305801-FX0454
Ultra Librarian 3D Model Ultra Librarian FX0454 CAD Model

Description

Fuse Holder 10 A 250V 1 Circuit Cartridge Panel Mount
