Same model may have multiple batches, images only for reference.

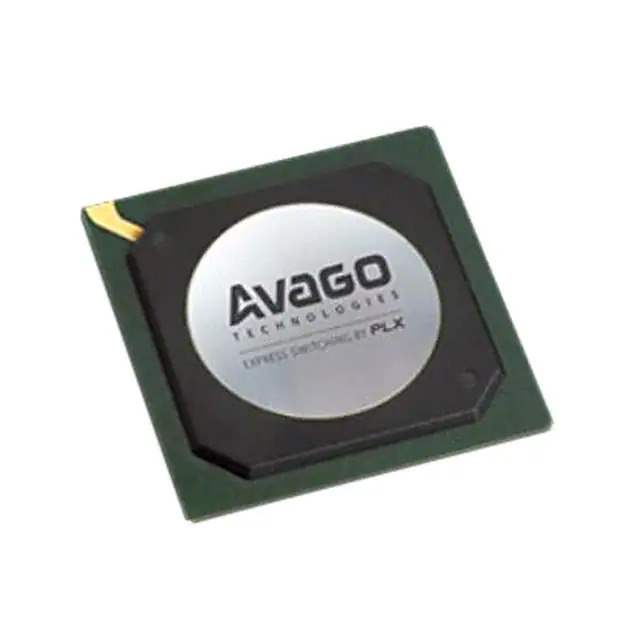

PEX8680-AA50RBC F Real Image
Same model may have multiple batches, images only for reference.

PEX8680-AA50RBC F

Part No PEX8680-AA50RBC F
Manufacturer Broadcom Limited
Catalog Interface - Analog Switches - Special Purpose
Description IC PCI EXPRESS SWITCH 1156FCBGA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches - Special Purpose
Mfr Broadcom Limited
Series ExpressLane™
Package Tray
Product Status Obsolete
Applications PCI Express®
Features Configurable
Mounting Type Surface Mount
Supplier Device Package 1156-FCBGA (35x35)
Standard Package 120 pcs
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 5A991B1
HTSUS 8542.39.0001
Win Source Part Number 851227-PEX8680-AA50RBC F
Ultra Librarian 3D Model Ultra Librarian PEX8680-AA50RBC F CAD Model

Description

The PEX8680-AA50RBC F is an analog switch IC from the ExpressLane™ series.

  • Product Name: PEX8680-AA50RBC F
  • Manufacturer: Broadcom Limited
  • Series: ExpressLane™
  • Status: Obsolete
  • Configurable: Yes
  • Application: PCI Express™
  • Package Configuration: Tray
  • Standard Package Quantity: 120 pcs
  • Mounting: Surface Mount
  • Package: 1156-FCBGA (35x35)
  • ECCN: 5A991B1
  • REACH: Unaffected
  • MSL: 4 (72 hours)
