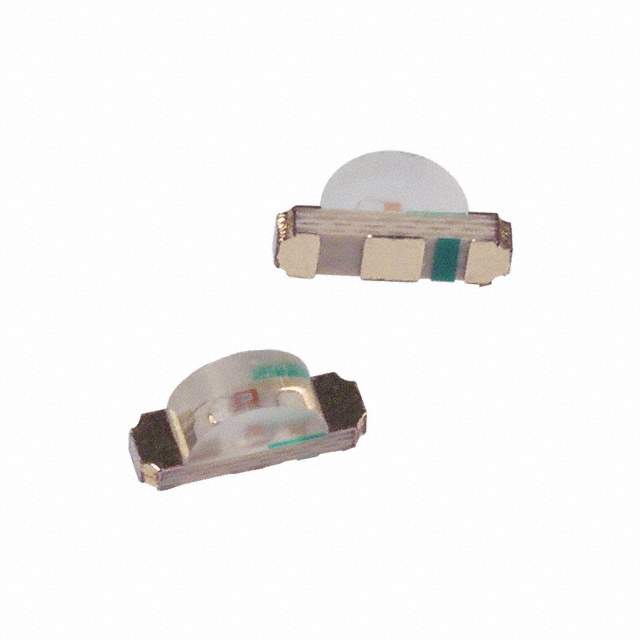

HSMZ-C110 Real Image
Same model may have multiple batches, images only for reference.

HSMZ-C110

Part No HSMZ-C110
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED CLEAR CHIP SMD R/A / Red 631nm LED Indication - Discrete 2.2V 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 170mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 130°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 631nm
Wavelength - Peak 643nm
Package / Case 2-SMD, No Lead
Supplier Device Package Chip LED
Dimension 3.20mm L x 1.50mm W
Height (Max) 1.00mm
Base Product Number HSMZ-C110
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-HSMZ-C110CT,516-HSMZ-C110TR,HSMZ-C110-ND,516-HSMZ-C110DKR
Standard Package 3,000
Win Source Part Number 1063558-HSMZ-C110
Ultra Librarian 3D Model Ultra Librarian HSMZ-C110 CAD Model

Description

The HSMZ-C110 is a chip LED that belongs to the category of optoelectronics and is manufactured by Broadcom Limited.

  • Win Source Part Number: 1063558
  • Color: Red
  • Millicandela Rating: 170mcd
  • Voltage-Forward (Vf): 2.2V
  • Current Test: 20mA
  • Wavelength-Dominant: 631nm
  • Wavelength-Peak: 643nm
  • Viewing Angle: 130 degrees
  • Height (max): 1.00mm
  • Package/Case: 2-SMD, No Lead
  • Supplier Device Package: Chip LED
  • Dimension: 3.20mm L x 1.50mm W
  • Lens Style: Rectangle with a domed top
  • Lens Size: 2.00mm x 1.00mm
  • ECCN: EAR99
  • MSL Level: 2A (4 Weeks)
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.41.0000
