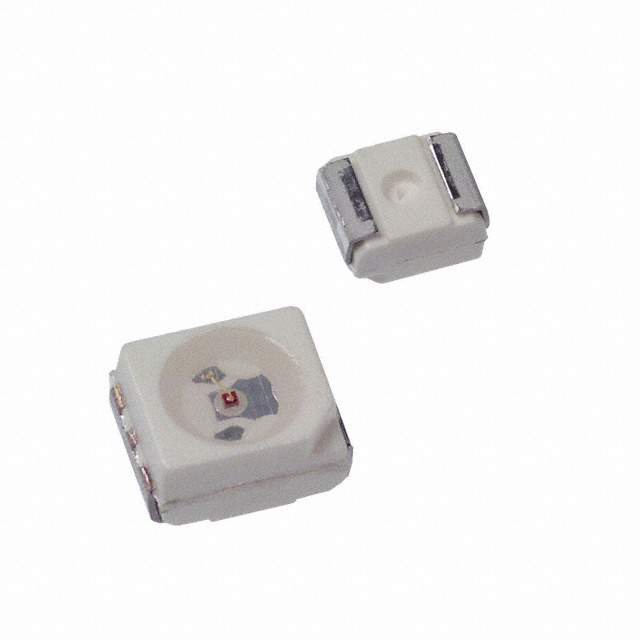

HSMZ-A100-T70J1

Name: HSMZ-A100-T70J1
Brand: Broadcom Limited
SKU: 1331796
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HSMZ-A100-T70J1
Manufacturer	Broadcom Limited
Catalog	LED Indication - Discrete
Description	LED RED CLEAR 2PLCC SMD / Red 630nm LED Indication - Discrete 2.2V 2-PLCC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Manufacturer	Broadcom Limited
Packaging	Reel - TR
Color	Red
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	350mcd
Lens Style	Round with Flat Top
Lens Size	2.20mm Dia
Voltage - Forward (Vf) (Typ)	2.2V
Current - Test	20mA
Viewing Angle	120°
Mounting	Surface Mount
Wavelength - Dominant	630nm
Wavelength - Peak	639nm
Case / Package	2-PLCC
Supplier Device Package	2-PLCC
Size / Dimension	3.20mm L x 2.80mm W
Height (Max)	2.10mm
Base Product Number	HSMZ-A100
RoHS Status	ROHS3 Compliant
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Part Number	HSMZA100T70J1,516-2126-2,516-2126-1,516-2126-6
Standard Package	2,000
Win Source Part Number	1331796-HSMZ-A100-T70J1
Ultra Librarian 3D Model	Ultra Librarian HSMZ-A100-T70J1 CAD Model

Alternative Products

Description

The HSMZ-A100-T70J1 is a surface-mount LED indication device from Broadcom Limited.

Standard Package: 2,000
Millicandela Rating: 350mcd
Viewing Angle: 120°
Voltage-Forward (Vf) (typical): 2.2V
Current-Test: 20mA
Dominant Wavelength: 630nm
Peak Wavelength: 639nm
Height (maximum): 2.10mm
MSL Level: 2A (4 Weeks)
REACH: Unaffected
HTSUS: 8541.41.0000
Other Part Numbers: HSMZA100T70J1,516-2126-2,516-2126-1,516-2126-6
