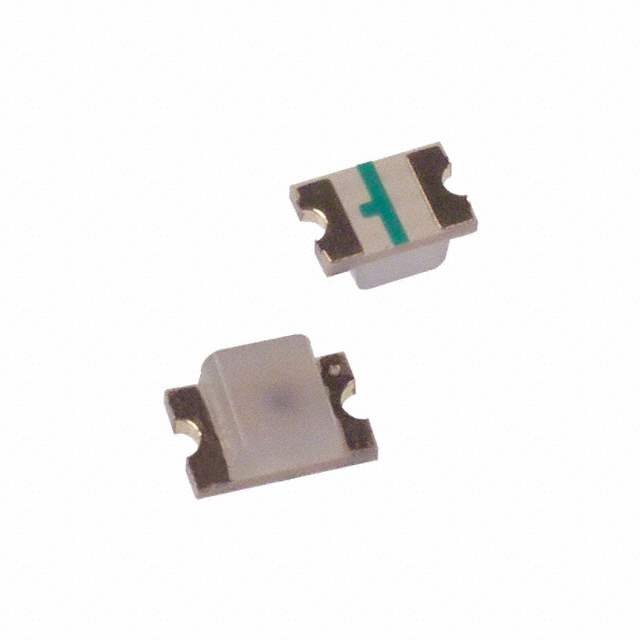

HSMM-C170 Real Image
Same model may have multiple batches, images only for reference.

HSMM-C170

Part No HSMM-C170
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED 0805 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Green
Lens Color White
Lens Transparency Diffused
Millicandela Rating 120mcd
Lens Style/Size Rectangle with Flat Top, 1.40mm x 1.25mm
Forward Voltage 3.3V
Current - Test 20mA
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 525nm
Wavelength - Peak 523nm
Case / Package Chip LED
Height (Max) 0.80mm
Win Source Part Number 48151-HSMM-C170
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian HSMM-C170 CAD Model

Description

The Broadcom Limited 48151-HSMM-C170 is a chip LED with a Millicandela rating of 120mcd and a forward voltage of 3.3V.

  • Viewing Angle: 170 degrees
  • Lens: Diffused white
  • Mounting: Surface-mount technology (SMT)
  • Shape: Rectangular with a flat top, measuring 1.40mm x 1.25mm
  • Wavelength: 525nm
  • Peak Wavelength: 523nm
  • Application: Commonly used in optoelectronic applications
  • Package: Reel, 4k pieces per package
