Same model may have multiple batches, images only for reference.

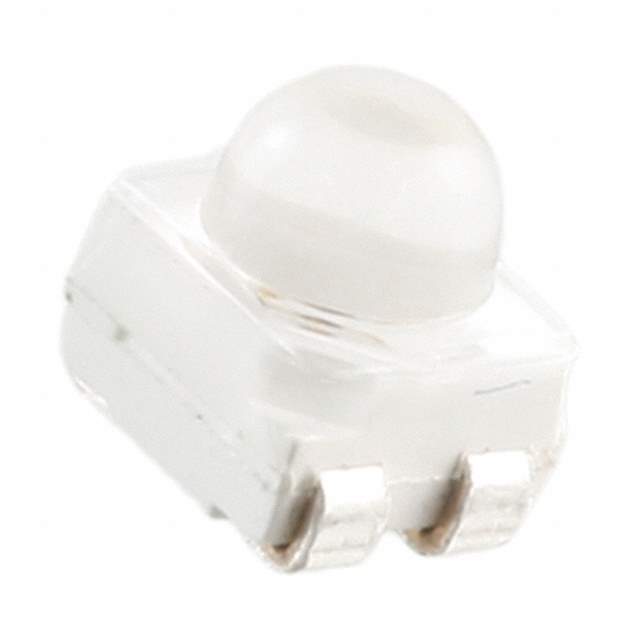

HSMA-A431-Y00M1 Real Image
Same model may have multiple batches, images only for reference.

HSMA-A431-Y00M1

Part No HSMA-A431-Y00M1
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description Surface Mount LED Indicator | LED AMBER CLEAR 4PLCC SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tape and Reel
Color Amber
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 5000mcd
Lens Style Round with Domed Top
Voltage - Forward (Vf) 2.2V
Current - Test 50mA
Viewing Angle 30°
Mounting Style SMD
Wavelength - Dominant 590nm
Wavelength - Peak 592nm
Manufacturer Package 4-PLCC
Supplier Device Package 4-PLCC
Parts Dimension 3.20mm L x 2.80mm W
Height (Maximum) 3.87mm
Family Part Number HSMA-A431
Manufacturer Pack Quantity 2,000
MSL Level 2A (4 Weeks)
Win Source Part Number 1181824-HSMA-A431-Y00M1
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMA-A431-Y00M1 CAD Model

Description

The HSMA-A431-Y00M1 is an amber colored LED with a standard configuration and a 30-degree viewing angle.

  • Color: Amber
  • Configuration: Standard
  • Viewing Angle: 30-degree
  • Lens Transparency: Clear
  • Millicandela Rating: 5000mcd
  • Package: 4-PLCC
  • Top Lens Style: Round Domed
  • Wavelength-Dominant: 590nm
  • Wavelength-Peak: 592nm
  • Application: Optoelectronics
  • Forward Voltage: 2.2V @ 50mA
  • Height: 3.87mm
  • Popularity Rating: Medium
  • Manufacturer Pack Quantity: 2000
  • MSL Level: 2A (4 weeks)
  • Parts Dimension: 3.20mm L x 2.80mm W
