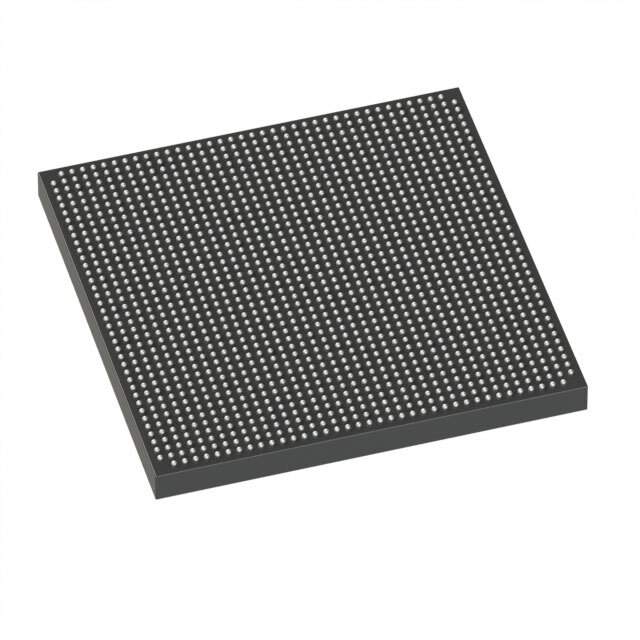

5SGXEA5K2F40C3N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series Stratix® V GX
Package Tray
Product Status Obsolete
Number of LABs/CLBs 185000
Number of Logic Elements/Cells 490000
Total RAM Bits 46080000
Number of I/O 696
Voltage - Supply 0.82V ~ 0.88V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1517-BBGA, FCBGA
Supplier Device Package 1517-FBGA (40x40)
Base Product Number 5SGXEA5
MSL Level 3 (168 Hours)
ECCN 3A001A2C
HTSUS 8542.39.0001
Other Names 969898
Standard Package 21
Win Source Part Number 1029807-5SGXEA5K2F40C3N
Ultra Librarian 3D Model Ultra Librarian 5SGXEA5K2F40C3N CAD Model

Description

The 1029807-5SGXEA5K2F40C3N is a Stratix® V GX series field programmable gate array (FPGA) integrated circuit (IC) with 696 input/output (I/O) pins, 185000 logic array blocks/carry logic blocks (LABs/CLBs), and 490000 logic elements/cells.

  • Series: Stratix® V GX
  • I/O: 696
  • LABs/CLBs: 185000
  • Logic Elements/Cells: 490000
  • RAM: 46080000 bits
  • Voltage Supply: 0.82V to 0.88V
  • Package/Case: 1517-BBGA, FCBGA
  • Supplier Device Package: 1517-FBGA (40x40)
  • Temperature Range: 0°C to 85°C (TJ)
  • Status: Obsolete
  • Alternative Parts: 5SGXMA5K2F40I2N, 5SGXEA5K1F40I2N, and 5SGXEA5K1F40C1N
  • MSL Level: 3 (168 hours)
  • HTSUS: 8542.39.0001
  • Manufacturer: Intel
