Same model may have multiple batches, images only for reference.

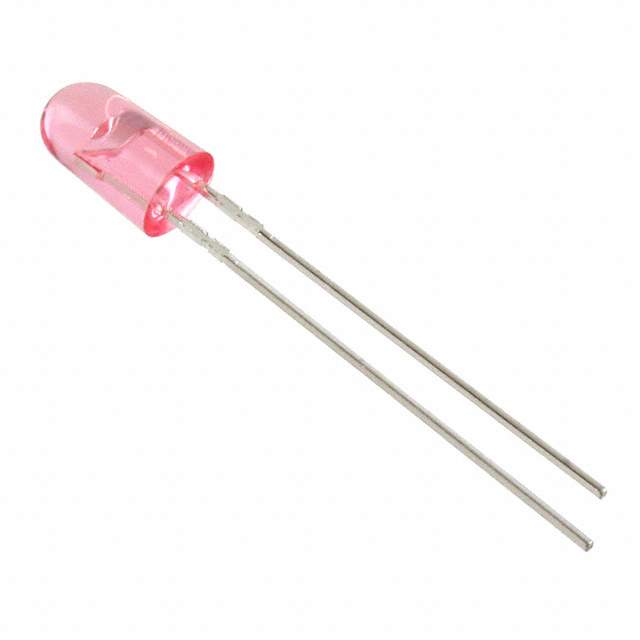

HLMP-BD06-P0000 Real Image
Same model may have multiple batches, images only for reference.

HLMP-BD06-P0000

Part No HLMP-BD06-P0000
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED CLEAR T/H / Red 630nm LED Indication - Discrete 2.2V Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Bulk
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Clear
Millicandela Rating 880mcd
Lens Style Oval with Domed Top
Lens Size 5.00mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 70°, 35°
Mounting Type Through Hole
Wavelength - Dominant 630nm
Wavelength - Peak 639nm
Package / Case Radial
Height (Max) 8.91mm
Base Product Number HLMP-BD06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-HLMP-BD06-P0000,HLMP-BD06-P0000-ND
Standard Package 2,000
Win Source Part Number 1216245-HLMP-BD06-P0000
Ultra Librarian 3D Model Ultra Librarian HLMP-BD06-P0000 CAD Model

Description

This electronic component is an LED indication - discrete product from Broadcom Limited.

  • Color: Red
  • Lens Transparency: Clear
  • Viewing Angle: 70 degrees and 35 degrees
  • Millicandela Rating: 880mcd
  • Forward Voltage: 2.2V
  • Wavelength-Dominant: 630nm
  • Wavelength-Peak: 639nm
  • Height: 8.91mm
  • Mounting Type: Through-Hole
  • Package: Bulk
  • Package/Case: Radial
  • Lens Style: Oval with a domed top
  • Lens Size: 5.00mm
  • REACH: Unaffected by REACH
  • ECCN: EAR99
