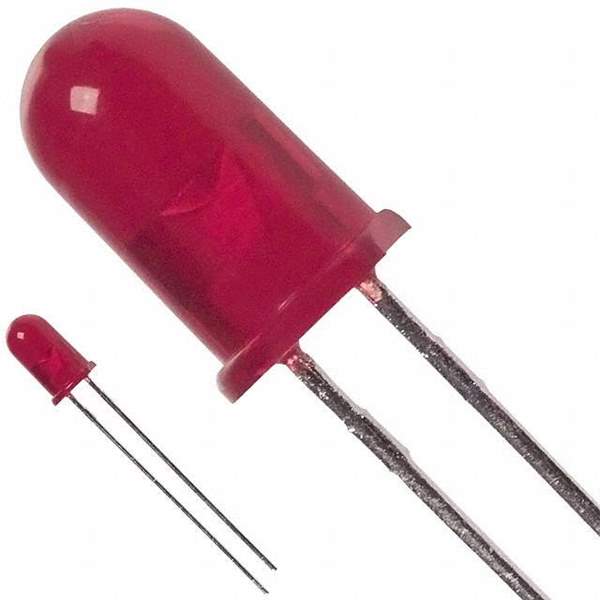

HLMP-3301 Real Image
Same model may have multiple batches, images only for reference.

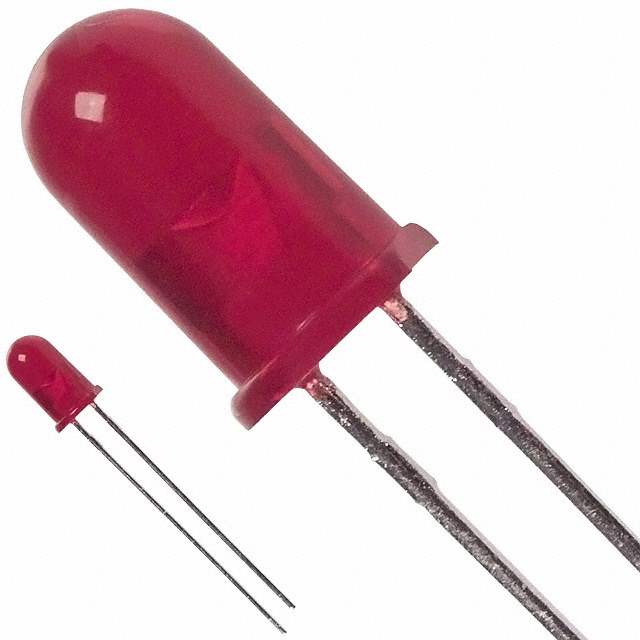

HLMP-3301

Part No HLMP-3301
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED DIFF 5MM ROUND T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging AMMO PACKAGE
Status Active
Color Red
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 5.4mcd
Lens Style/Size Round with Domed Top, 5mm (T-1 3/4), 4.83mm
Forward Voltage 1.9V
Current - Test 10mA
Viewing Angle 60°
Mounting Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Case / Package T-1 3/4
Height (Max) 9.19mm
Win Source Part Number 094559-HLMP-3301
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in LED Lighting, Portable Devices, Industrial, Consumer Electronics
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian HLMP-3301 CAD Model

Description

The Broadcom Limited HLMP-3301 is a red LED with a viewing angle of 60 degrees.

  • Millicandela Rating: 5.4mcd
  • Wavelength: 626nm
  • Mounting: Through Hole
  • Forward Voltage: 1.9V
  • Lens Style/Size: Round with a domed top, 5mm (T-1 3/4), 4.83mm
