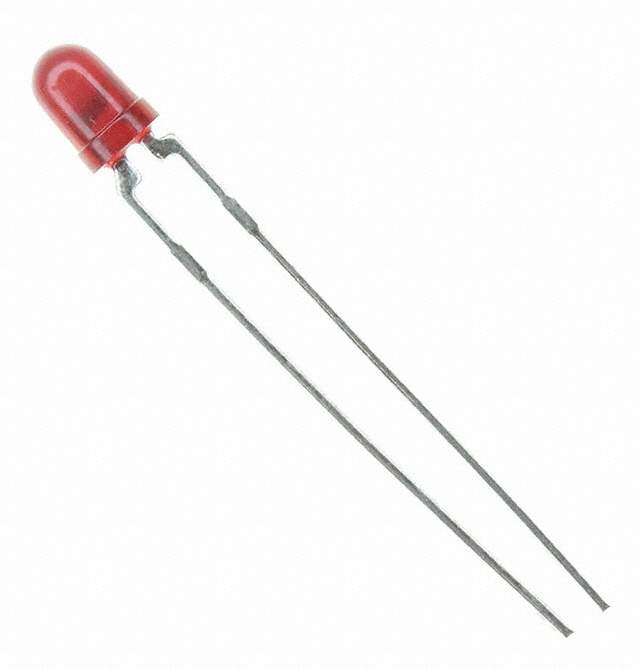

HLMP-1301-E0002 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel (TR),Cut Tape (CT)
Color Red
Configuration Standard
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 3.4mcd
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 10mA
Viewing Angle 60°
Mounting Type Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Package / Case Radial
Supplier Device Package T-1 (3mm)
Height (Max) 6.35mm
Base Product Number HLMP-1301
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-1750-6-ND,HLMP-1301-E0002-ND,HLMP1301E0002,516-1750-1,516-1750-2,516-1750-6,516-1750-6INACTIVE
Standard Package 1,800
Win Source Part Number 1026621-HLMP-1301-E0002
Ultra Librarian 3D Model Ultra Librarian HLMP-1301-E0002 CAD Model

Description

The Broadcom Limited HLMP-1301-E0002 is a red LED indication discrete component.

  • It has a viewing angle of 60 degrees and a lens size of 3mm, T-1.
  • This LED component can operate with a forward voltage of 1.9V and a test current of 10mA.
  • The dominant wavelength of the HLMP-1301-E0002 is 626nm, and the peak wavelength is 635nm.
  • This component is available in a radial package/case and is compliant with ECCN EAR99.
  • It is commonly available in tape and reel (TR) or cut tape (CT) packaging with a standard package of 1,800.
