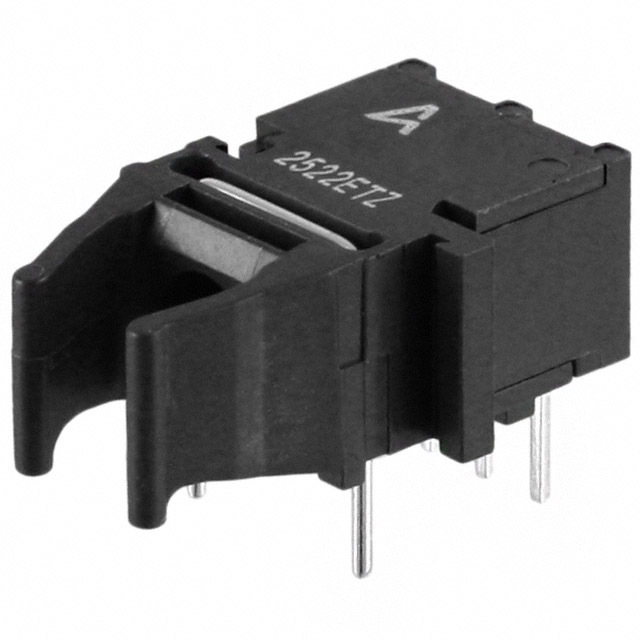

HFBR-2522ETZ Broadcom Limited
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics - Fiber Optic Receivers
Mfr Broadcom Limited
Series Versatile Link
Package Tube
Product Status Active
Data Rate 1MBd
Voltage - Supply 4.75V ~ 5.25V
Power - Minimum Receivable -21.6dBm
Current - Supply 6.2 mA
Applications General Purpose
Base Product Number HFBR-2522
Standard Package 200 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.62.0090
Win Source Part Number 597529-HFBR-2522ETZ
Ultra Librarian 3D Model Ultra Librarian HFBR-2522ETZ CAD Model

Description

The HFBR-2522ETZ is a versatile link fiber optic receiver from Broadcom Limited.

  • Package: Tube
  • Applications: General purpose
  • Data Rate: 1MBd
  • Supply Voltage: 4.75V to 5.25V
  • Current Supply: 6.2 mA
  • Minimum Receivable Power: -21.6dBm
  • Product Status: Active
  • ECCN: EAR99
  • REACH Regulations: Unaffected
  • MSL: 3 (168 hours)
  • Commonly used in: Various optoelectronics applications that require reliable and high-speed data transmission over fiber optic cables
