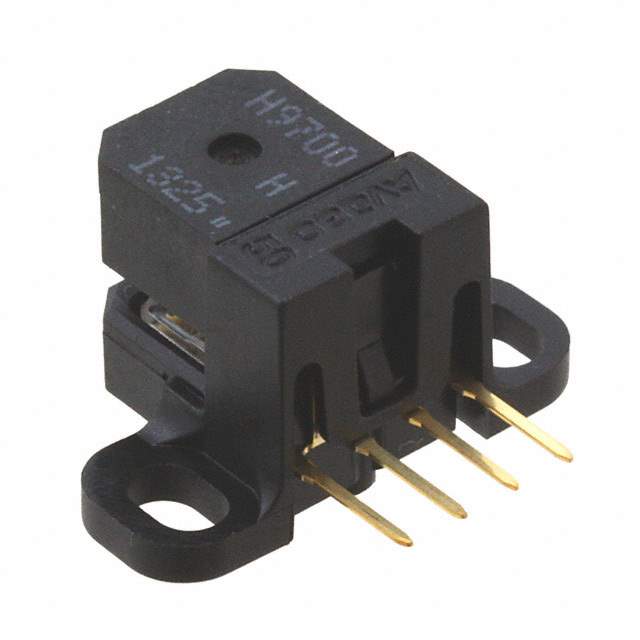

HEDS-9700#H50 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9700#H50

Part No HEDS-9700#H50
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER SMALL 2CH 400CPR STD / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 400CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 400
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775896-HEDS-9700#H50
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-9700
Introduction Date January 01, 2006
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9700#H50 CAD Model

Description

The Broadcom Limited HEDS series encoder is an optical encoder that is used to convert the angular position of a shaft into an electrical signal from Broadcom Limited.

  • Output Type: Quadrature
  • Operating Supply Voltage: 5V
  • Resolution: 400 pulses per revolution
  • Mounting: Chassis mountable
  • Termination: Terminal pins
  • Suitable for use in: Industrial automation, robotics, and motion control applications
  • Estimated EOL Date: 2027
