Same model may have multiple batches, images only for reference.

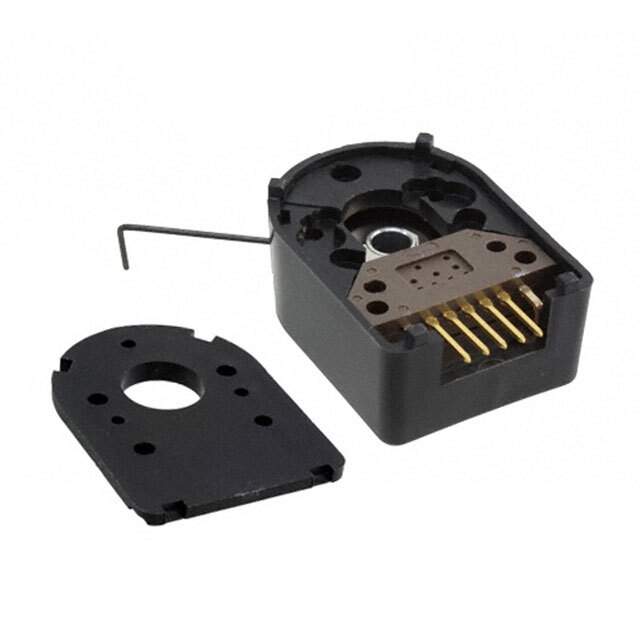

HEDS-5500#A14 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5500#A14

Part No HEDS-5500#A14
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER KIT 2CH 500CPR 5MM / Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 500CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Operating Supply Voltage 5V
Actuator Type 5mm Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775854-HEDS-5500#A14
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-5500
Introduction Date May 31, 2005
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-5500#A14 CAD Model

Description

The Broadcom Limited HEDS-5500 series is a family of optical encoders designed for use in motors and other motion control applications.

  • Actuator: 5mm open center
  • Output Type: Quadrature (incremental)
  • Pulses per Revolution: 500
  • Orientation: Vertical
  • Built-in Switch: No
  • Termination: Pins
  • Supply Voltage: 5V
  • Halogen-Free: No
  • Estimated EOL Date: 2027
  • Country of Origin: Malaysia
