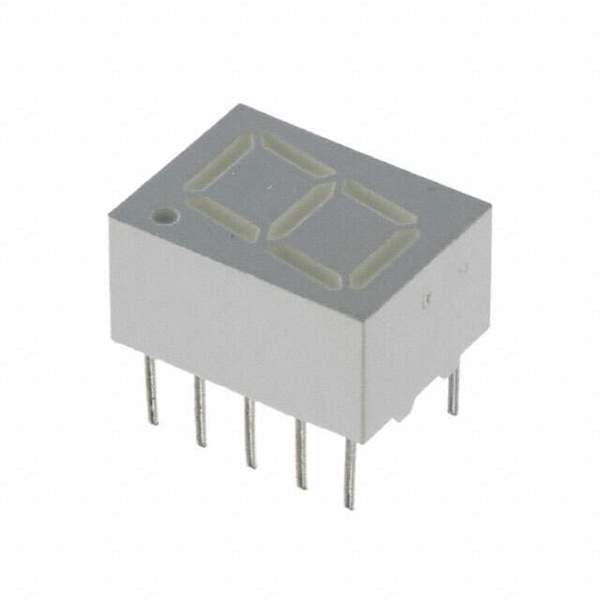

HDSP-301E Real Image
Same model may have multiple batches, images only for reference.

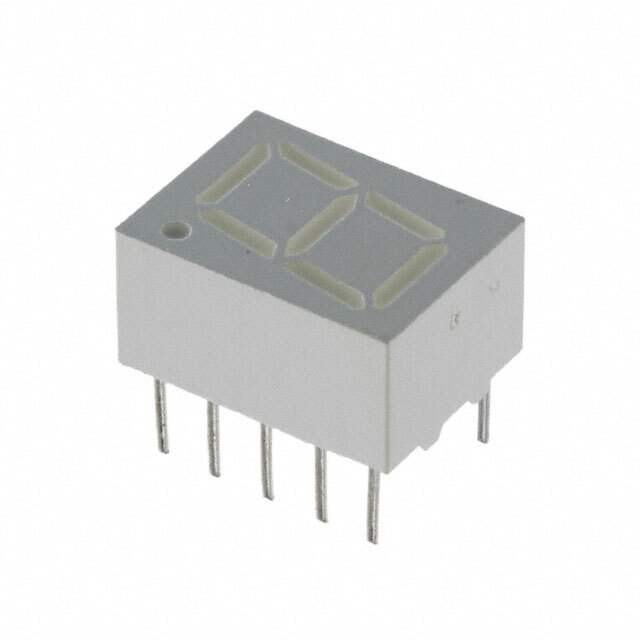

HDSP-301E

Part No HDSP-301E
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG HER CA 0.4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Number of Characters 1
Digit/Alpha Size 0.40" (10.16mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Forward Voltage 1.9V
Current - Test 20mA
Millicandela Rating 1.8mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 105mW
Dimension 10-DIP (0.300", 7.62mm)
Win Source Part Number 204710-HDSP-301E
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian HDSP-301E CAD Model

Description

The Broadcom Limited 204710-HDSP-301E is a 7-segment display component that features a peak wavelength of 635nm and a millicandela rating of 1.8mcd. This component has a forward voltage of 1.9V and a power dissipation of 105mW. The digit/alpha size is 0.40" (10.16mm), and the common pin is common anode. The component is red in color and has a dimension of 10-DIP (0.300", 7.62mm). It is packaged in bulk and has a popularity of medium. It is commonly used in various optoelectronic devices.
