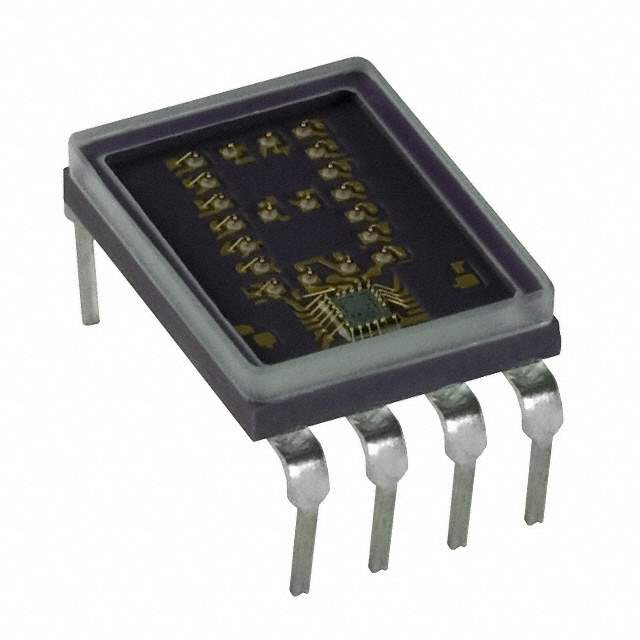

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tray
Number of Characters 1
Parts Dimension 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm)
Digit/Alpha Size 0.29" (7.37mm)
Display Type 7-Segment, Hexadecimal
Common Pin Common Anode
Color Red
Current - Test 10mA
Millicandela Rating 0.26mcd ~ 1.82mcd
Wavelength - Peak 635nm
Power Dissipation (Maximum) 963mW
Manufacturer Package 8-DIP (0.600", 15.20mm)
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1179713-HDSP-0772
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-0772 CAD Model

Description

The Broadcom Limited HDSP-0772 is a red color 7-segment hexadecimal display with a common anode.

  • Millicandela Rating: It has a millicandela rating of 0.26mcd to 1.82mcd and a current test of 10mA.
  • Wavelength: The device has a wavelength peak of 635nm
  • Digit/Alpha Size: a digit/alpha size of 0.29" (7.37mm).
  • Application: The device is suitable for use in optoelectronics.
  • Manufacturer Package: The manufacturer package is 8-DIP (0.600", 15.20mm)
  • Manufacturer Pack Quantity: the manufacturer pack quantity is 25.
  • Power Dissipation: The device has a power dissipation of 963mW.
  • MSL Level: The MSL level is 1 (unlimited).
  • Voltage Forward (Vf): The device has no voltage forward (Vf) specified.
