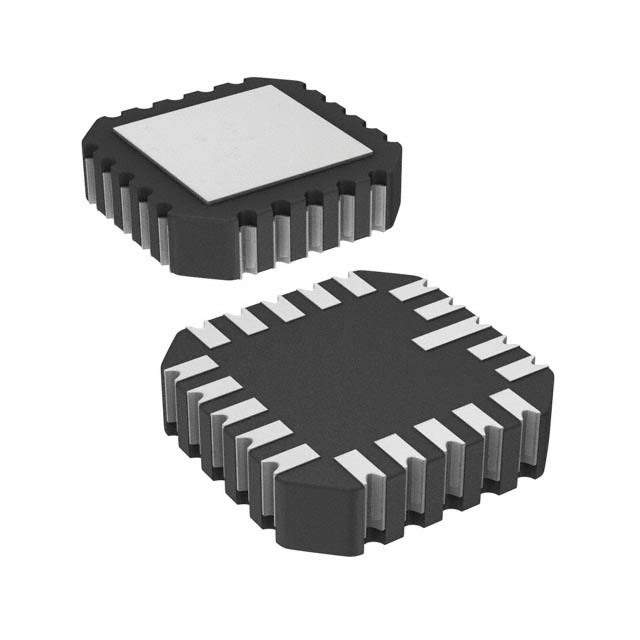

HCPL-6631 Real Image
Same model may have multiple batches, images only for reference.

HCPL-6631

Part No HCPL-6631
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description Hermetically Sealed, High Speed, High CMR, Logic Gate Optocouplers | OPTOISO 1.5KV 2CH OPN COL 20LCCC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Bulk
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 1500VDC
Common Mode Transient Immunity (Minimum) 1kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Current - Output / Channel 25mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Maximum) 100ns, 100ns
Rise / Fall Time 35ns, 35ns
Voltage - Forward (Vf) 1.5V
Current - DC Forward (If) (Maximum) 20mA
Supply Voltage (V) 4.5V ~ 5.5V
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 20-CLCC
Supplier Device Package 20-LCCC (8.89x8.89)
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1179135-HCPL-6631
Manufacturer Homepage www.home.agilent.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HCPL-6631 CAD Model

Description

The HCPL-6631 optocoupler by Broadcom Limited is a high-speed, dual-channel optocoupler that comes with an open collector output and Schottky clamping diodes.

  • Product: HCPL-6631
  • Manufacturer: Broadcom Limited
  • Type: Optocoupler
  • Channels: Dual-channel
  • Output: Open collector
  • Diodes: Schottky clamping diodes
  • Data Rate: 10MBd
  • Application: DC input
  • Voltage Isolation: 1500VDC
  • Maximum Forward Current: 20mA
  • Current Output: 25mA per channel
  • Package: 20-LCCC (8.89x8.89)
  • Temperature Range: -55°C to 125°C
  • Propagation Delay tpLH / tpHL (Maximum): 100ns, 100ns
  • Suitable for: Isolator applications
