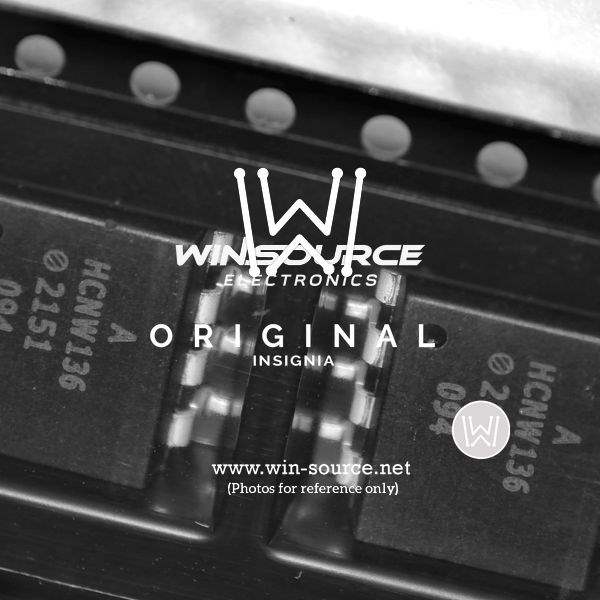

HCNW136-500E Real Image HCNW136-500E Real Image
Same model may have multiple batches, images only for reference.
HCNW136-500E Real Image HCNW136-500E Real Image
HCNW136-500E Real Image HCNW136-500E Real Image
Same model may have multiple batches, images only for reference.

HCNW136-500E

Part No HCNW136-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 8DIPGW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 15% @ 16mA
Switching Turn-On and Turn-Off Time 1μs, 1μs (Max)
Input Type DC
Maximum Output Voltage 20V
Channel Output Current 8mA
Forward Voltage 1.68V
Continuous forward current- Max 25mA
Temperature Range - Operating -55°C to 85°C
Mounting SMD (SMT)
Case / Package 8-DIP Gull Wing
Win Source Part Number 1029773-HCNW136-500E
Popularity Medium
Supply and Demand Status Balance
Quantity per package 750
Ultra Librarian 3D Model Ultra Librarian HCNW136-500E CAD Model

Description

The Broadcom Limited HCNW136-500E is an optocoupler device manufactured by Broadcom Limited and is available in a reel - TR packaging with an SMD (SMT) mounting style.

  • Forward Voltage: 1.68V
  • Input Type: DC
  • Channels: One channel
  • Isolation Voltage: 5000Vrms
  • Category: Isolator
  • Status: Active
  • Operating Temperature Range: -55°C to 85°C
  • Case/Package: 8-DIP Gull Wing
  • Minimum DC Current Transfer Ratio: 15% @ 16mA
  • Switching Turn-On and Turn-Off Time: 1μs, 1μs (Max)
  • Maximum Output Voltage: 20V
  • Channel Output Current: 8mA
  • Continuous Forward Current-Max: 25mA
  • Supply and Demand Status: Balanced
  • Quantity Per Package: 750
