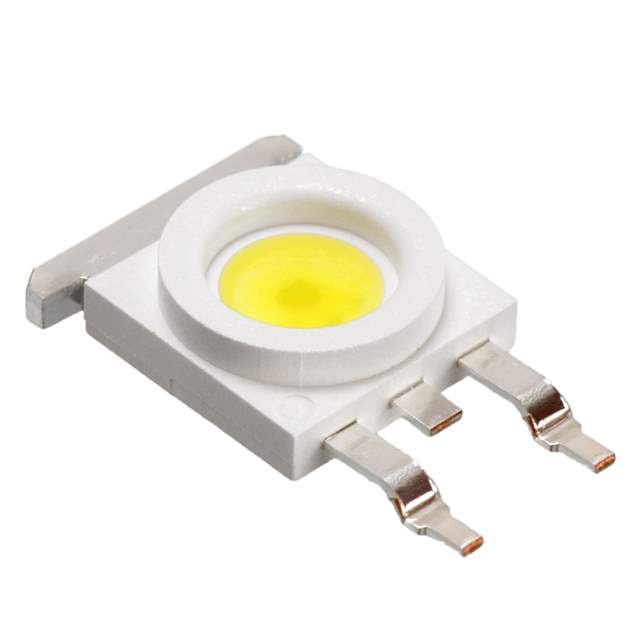

ASMT-MW20-NNN00 Real Image
Same model may have multiple batches, images only for reference.

ASMT-MW20-NNN00

Part No ASMT-MW20-NNN00
Manufacturer Broadcom Limited
Catalog LED Lighting - White
Description LED MOONSTONE COOL WHITE TO252-3 / LED Lighting Moonstone™ White, Cool 7000K (4000K ~ 10000K) 3.2V 350mA 110° TO-252-3, DPak (2 Leads + Tab), SC-63
Datasheet
ASMT-MW20-NNN00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Manufacturer Broadcom Limited
Packaging Tube
Product Status Obsolete
Color White, Cool
CCT (K) 7000K (4000K ~ 10000K)
Flux @ 85°C, Current - Test 127lm
Flux @ 25°C, Current - Test 143lm (124lm ~ 161lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.2V
Lumens/Watt @ Current - Test 128 lm/W
Current - Max 700mA
Viewing Angle 110°
Mounting Surface Mount
Case / Package TO-252-3, DPak (2 Leads + Tab), SC-63
Size / Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) 0.134" (3.40mm)
Thermal Resistance of Package 10°C/W
Base Product Number ASMT-MW20
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 516-2132-5
Standard Package 500
Win Source Part Number 1331769-ASMT-MW20-NNN00
Ultra Librarian 3D Model Ultra Librarian ASMT-MW20-NNN00 CAD Model

Description

The Broadcom Limited ASMT-MW20-NNN00 is a white, cool LED designed for surface mount applications.

  • Viewing Angle: 110°
  • Forward Voltage (Vf): 3.2V (typical)
  • Maximum Current: 700mA
  • CCT: 7000K (4000K ~ 10000K)
  • Flux @ 85°C: 127lm @ 350mA (test current)
  • Flux @ 25°C: 143lm (124lm ~ 161lm) @ 350mA (test current)
  • Lumens/Watt: 128 lm/W
  • Package: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Thermal Resistance: 10°C/W
  • REACH unaffected: Yes
  • Packaging: tube of 500
