Same model may have multiple batches, images only for reference.

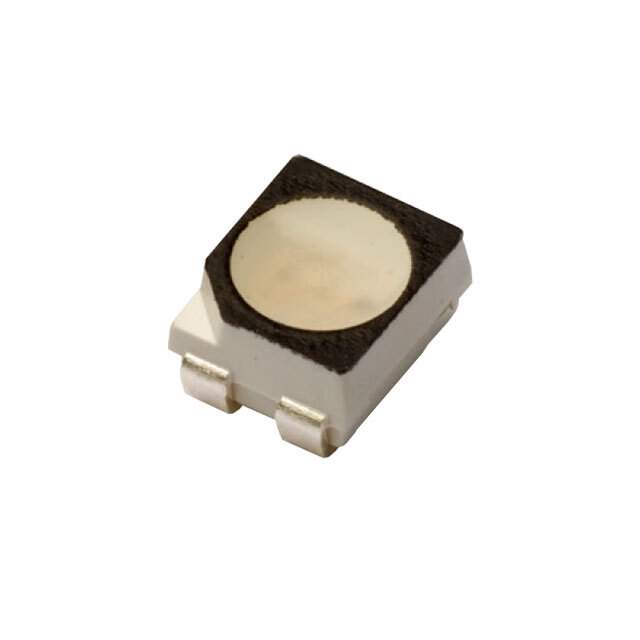

ASMB-MTB1-0A3A2 Real Image
Same model may have multiple batches, images only for reference.

ASMB-MTB1-0A3A2

Part No ASMB-MTB1-0A3A2
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RGB DIFFUSED 4PLCC SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 540mcd Red, 1600mcd Green, 350mcd Blue
Lens Style/Size Round with Flat Top, 2.40mm
Forward Voltage 2.1V Red, 3.1V Green, 3.1V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 115°
Mounting SMD (SMT)
Wavelength - Dominant 625nm Red, 530nm Green, 470nm Blue
Wavelength - Peak 634nm Red, 522nm Green, 465nm Blue
Case / Package 4-PLCC
Height (Max) 1.90mm
Win Source Part Number 1018632-ASMB-MTB1-0A3A2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name ASMB-MTB1-0A3A2
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ASMB-MTB1-0A3A2 CAD Model

Description

The Broadcom ASMB-MTB1-0A3A2 is a high-quality optoelectronic component that is designed for use in a variety of electronic devices.

  • Popularity: High
  • Production Status: Active
  • LED Colors: Red, Green, and Blue
  • Configuration: Common Anode
  • Forward Voltage (Red): 2.1V
  • Forward Voltage (Green): 3.1V
  • Forward Voltage (Blue): 3.1V
  • Viewing Angle: 115 degrees
  • Millicandela Rating (Red): 540mcd
  • Millicandela Rating (Green): 1600mcd
  • Millicandela Rating (Blue): 350mcd
  • Mounting Technology: SMD
  • Case/Package: 4-PLCC
  • Manufacturer: Broadcom Limited
