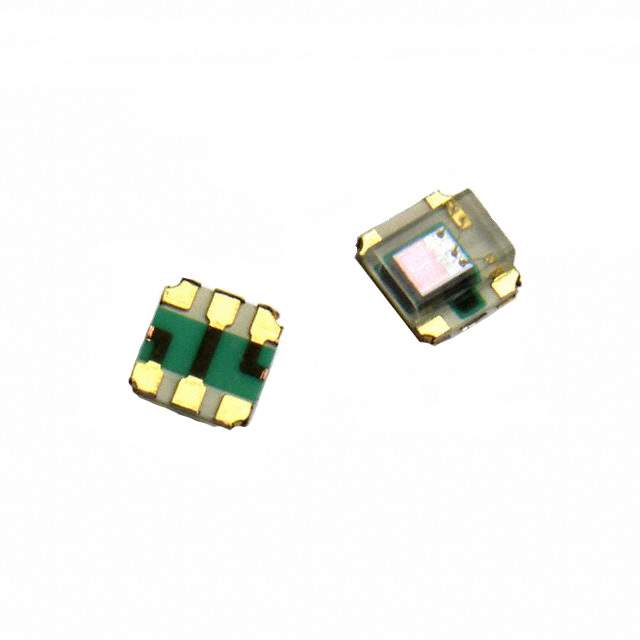

APDS-9003-020 Real Image
Same model may have multiple batches, images only for reference.

APDS-9003-020

Part No APDS-9003-020
Manufacturer Broadcom Limited
Catalog Optical Sensors - Ambient Light, IR, UV Sensors
Description Miniature Surface-Mount Ambient Light Photo Sensor | SENSOR OPT 620NM AMB 6CHIPLED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Packaging Reel
Status Obsolete
Type Ambient
Wavelength 620nm
Proximity Detection No
Output Type Voltage
Supply Voltage (V) 2.4V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 6-SMD, No Lead
Supplier Device Package 6-Pin ChipLED
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 717678-APDS-9003-020
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name APDS-9003
Introduction Date June 07, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian APDS-9003-020 CAD Model

Description

The electronic component with ID 662794 is a high popularity product manufactured by Broadcom Limited.

  • Type: 6-pin ChipLED ambient sensor
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete, replaced by APDS-9005-020
  • Supply and Demand Status: Balanced
