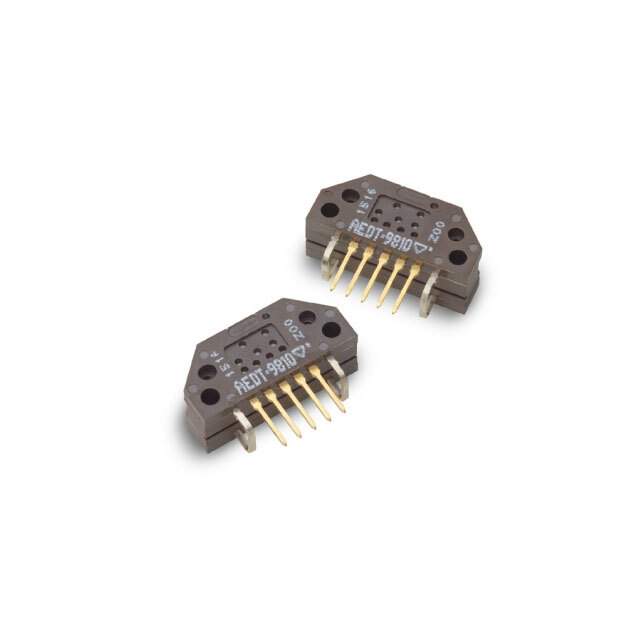

AEDT-9810-T00

Part No AEDT-9810-T00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER 3CH COMM HI TEMP 2000CPR / High Temperature 115 degree C, High Resolution, Three Channels Optical Incremental Encoder Modules
Datasheet
AEDT-9810-T00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 2000
Operating Supply Voltage 4.5 V ~ 5.5 V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation User Selectable
Termination Style Terminal Pins
Win Source Part Number 768303-AEDT-9810-T00
Popularity Medium
Supply and Demand Status Limited
Family Name AEDT-9810
ECCN EAR99
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian AEDT-9810-T00 CAD Model

Description

The AEDT-9810-T00 by Broadcom Limited is an optical encoder used for various applications.

  • Orientation: User-Selectable
  • Mounting Option: Chassis Mount
  • Output Type: Quadrature with Incremental Index
  • Operating Supply Voltage: 4.5V to 5.5V
  • Encoder Type: Optical
  • Pulses per Revolution: 2000
  • Supply and Demand Status: Limited
