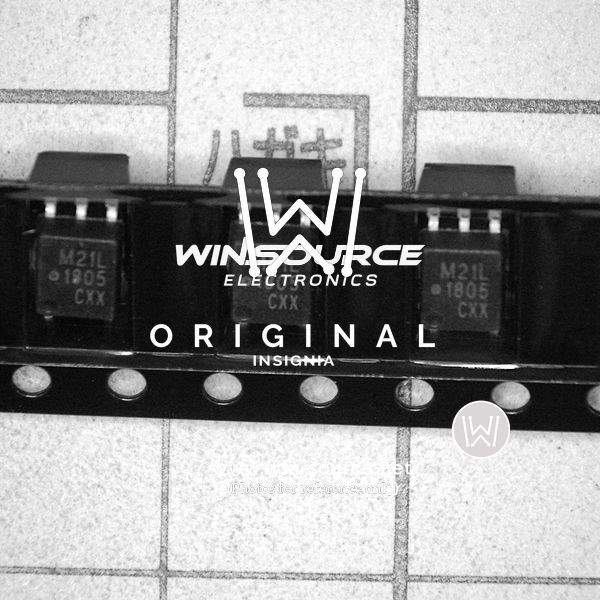

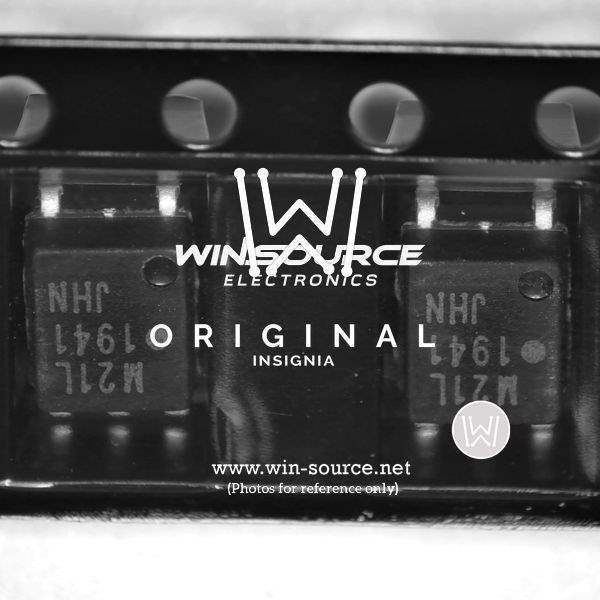

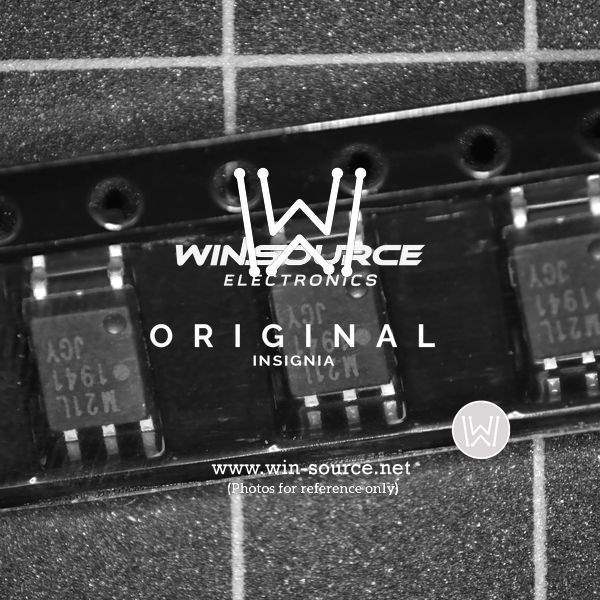

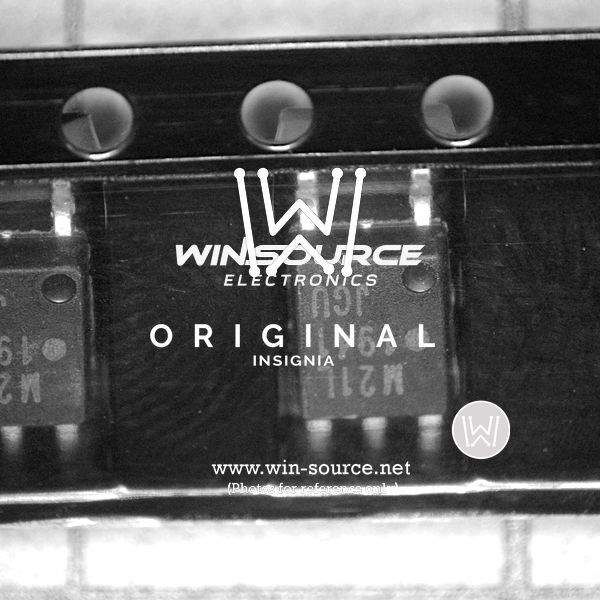

ACPL-M21L-500E Broadcom Limited ACPL-M21L-500E Real Image ACPL-M21L-500E label picture ACPL-M21L-500E real image17067 ACPL-M21L-500E real image17068 ACPL-M21L-500E Real Image1 ACPL-M21L-500E Real Image2
Same model may have multiple batches, images only for reference.
ACPL-M21L-500E Broadcom Limited ACPL-M21L-500E Real Image ACPL-M21L-500E label picture ACPL-M21L-500E real image17067 ACPL-M21L-500E real image17068 ACPL-M21L-500E Real Image1 ACPL-M21L-500E Real Image2
ACPL-M21L-500E Broadcom Limited ACPL-M21L-500E Real Image ACPL-M21L-500E label picture ACPL-M21L-500E real image17067 ACPL-M21L-500E real image17068 ACPL-M21L-500E Real Image1 ACPL-M21L-500E Real Image2
Same model may have multiple batches, images only for reference.

ACPL-M21L-500E

Part No ACPL-M21L-500E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description Low Power, 5 MBd Digital CMOS Optocoupler | OPTOISO 3.75KV PUSH PULL 5SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Reel
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Minimum) 25kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 10mA
Data Rate 5MBd
Propagation Delay tpLH / tpHL (Maximum) 250ns, 250ns
Rise / Fall Time 11ns, 11ns
Voltage - Forward (Vf) 1.5V
Current - DC Forward (If) (Maximum) 8mA
Supply Voltage (V) 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Manufacturer Package 6-SOIC , 5 Leads
Supplier Device Package 5-SO
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1135402-ACPL-M21L-500E
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACPL-M21L-500E CAD Model

Description

The Broadcom Limited ACPL-M21L-500E is a push-pull, totem pole output type DC input current isolator.

  • Manufacturer: Broadcom Limited
  • Output Type: Push-pull, totem pole
  • Data Rate: 5MBd
  • Current Output: 10mA
  • Voltage Isolation: 3750Vrms
  • Inputs (Side 1): 1
  • Inputs (Side 2): 0
  • Package: 5-SO
  • Operating Temperature: -40°C to 105°C
  • Supply Voltage: 2.7V to 5.5V
  • Forward Voltage: 1.5V
  • Rise/Fall Time: 11ns
  • Maximum Propagation Delay: 250ns
  • Popularity: Popular
  • Supply and Demand: Balance
