Same model may have multiple batches, images only for reference.

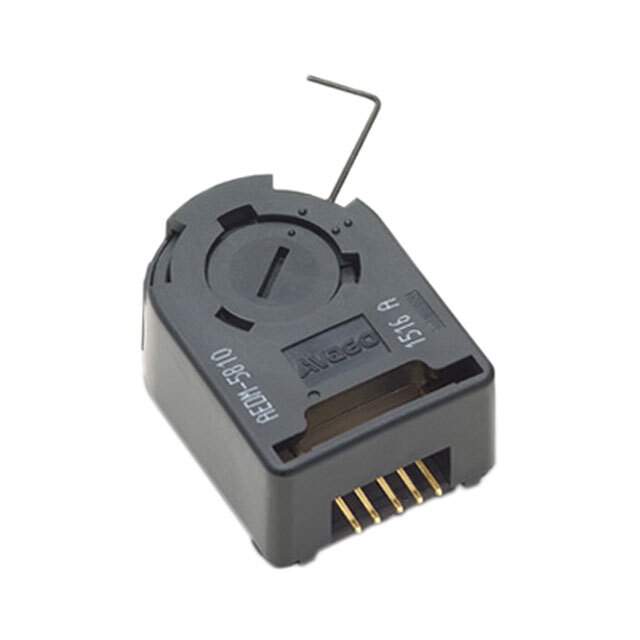

AEDM-5810-T06 Real Image
Same model may have multiple batches, images only for reference.

AEDM-5810-T06

Part No AEDM-5810-T06
Manufacturer Broadcom Limited
Catalog Encoders
Description KIT ENCODER 3CH 2000CPR 1.4" / Quick Assembly High Resolution Three Channel Optical Encoders
Datasheet
AEDM-5810-T06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 2000
Operating Supply Voltage 4.5 V ~ 5.5 V
Actuator Type Hole for Shaft
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Right Angle
Termination Style Terminal Pins
Win Source Part Number 772754-AEDM-5810-T06
Popularity Medium
Supply and Demand Status Balance
Family Name AEDM-5810
ECCN EAR99
Halogen Free Compliant
Ultra Librarian 3D Model Ultra Librarian AEDM-5810-T06 CAD Model

Description

The Broadcom Limited AEDM-5810-T06 is an electronic component that falls under the category of Sensors and Transducers.

  • Encoder Type: Optical
  • Output Type: Quadrature
  • Index: Incremental
  • Shaft Hole: Built-in
  • Mounting: Chassis, Motors
  • Manufacturer: Broadcom Limited
  • Win Source Part Number: 772754-AEDM-5810-T06
  • RoHS Compliant: Yes
  • Detent: No
